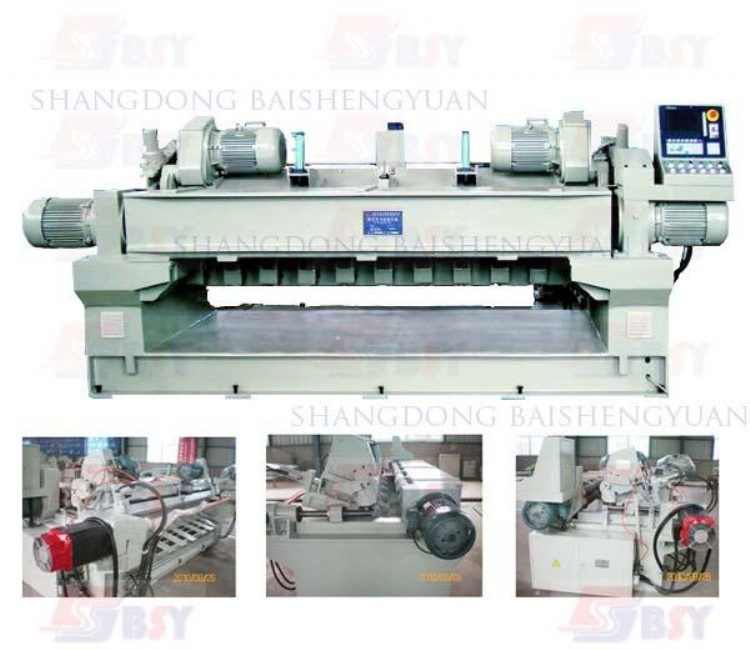

4 ft,8 ft CNC veneer non-spindle rotary lathe SL2600/3
Model: SL2600/3
Category: Woodworking Machinery Industry / Veneer & Plywood Manufacturing / Veneer Clipper
Characteristics
during peeling could change veneer thickness,adopting International numerical control system, improving the utilization of wood log,achieve high efficiency, improvement of wood log utilization.
Specifications
4' PEELER SL1350 / 3；8' PEELER SL2600 / 3；
Maximum peeling length (mm):1350；2600
Peeling the largest diameter (mm):Φ 360
End wood core diameter (mm):Φ 40
Peeled veneer thickness (mm):0.8 - 3.0
Veneer peeling speed: 42m/min
Total power (kw):20.6；28.1
Overall dimension mm):
3450 × 1950 × 1700；3380 × 1900 × 1600；
4650 × 1950 × 1700；4650 × 1900 × 1600
Net Weight (kg):7500；7000；9500；8500
