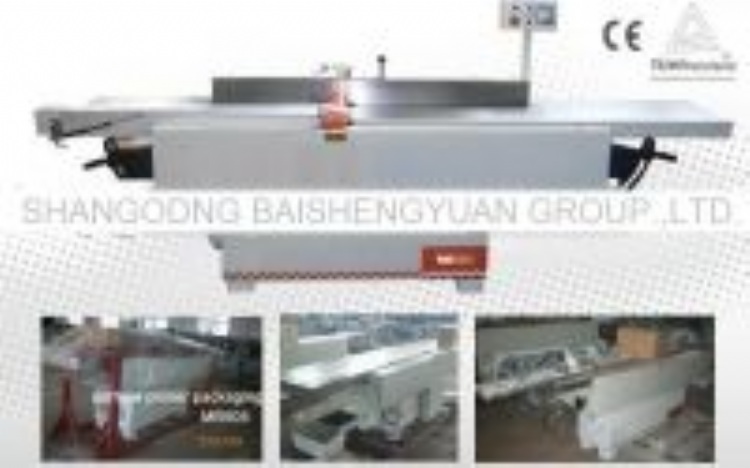

SURFACE PLANER,WOODWOKRING PLANER
Model: MB505
Category: Woodworking Machinery Industry / Planing & Moulding Machinery / Hand Feed Planer; jointer
Characteristics
Controls positioned on the hanging panel located above the worktable；
Manual infeed table movement with table position displayed on the metric scale；
Planer shalf protection；
Automatic motor brake ；
Big dimension cast-iron guide with additional bucket guide
Specifications
TECHNICAL DATA
Useful working width mm 520
Total worktable length mm 2940
Infeed table length mm 1732
Planning fence dimension mm 1500X175
Planning fence tilting angle degrees 90 TO 45
Spindle rotation speed rpm 5000
Main motor power 5,5/7,5
Extraction outlet diameter mm 120
Planning spindle diameter mm 120
Number of knives 4
Overall dimensions mm 2600x640x1320
Net weight kg 720
