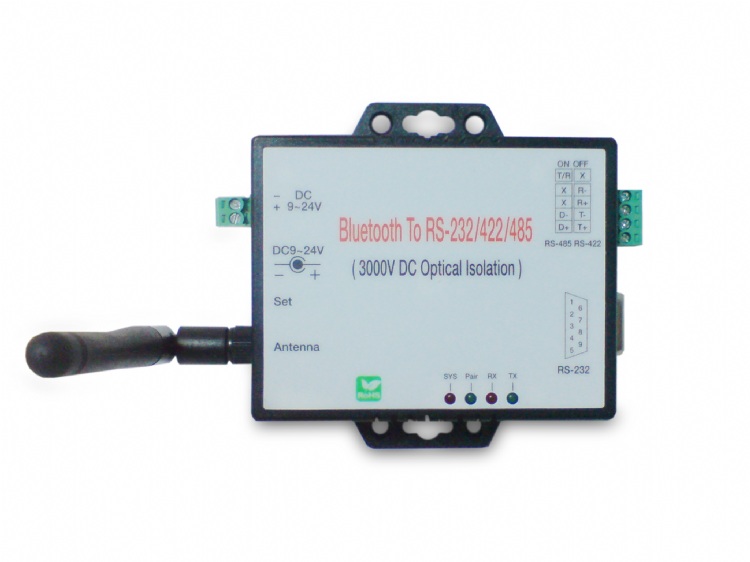

RS-232/422/485 Bluetooth Adapter
Model: BS-101(-I)
Category: Automatic/Industrial Machines & Equipments / Auto-Control Panel Design/Installation / CNC Controllers for Machine Tools and Industrial Machinery
Characteristics
Replace any existing RS-232 cable
Plug-In Design
Full Bluetooth 2.0 Support + EDR
No external software needed
Easy to config Baud Rate
Support baud rate Max 115.2 Kbps. Min 1200 bps
Master or Slave Role is selectable
5 VDC external Power supply
Distance 300 feets (Enhance Antenna) Class 1
Specifications
Serial Port
Plug and Play environments
ABS cover transparent blue
External ANT optional, Reverse SMA connector
Bluetooth：Version 2.0 + EDR
Supported Bluetooth Profiles：Generic Access Profile, Serial Port Profile
Bluetooth radio：Class 2 / Class 1
Serial Interface：RS-232 Female DSUB-9 connector
( RX / TX crossed over )
Power
External adapter with DC Jack 1, 3 mm
5V DC, 200 mA
Current consumption 80mA
Environment
Operating Temperature：0 ~ +60℃
Storage Temperature：-15 ~ +70℃
Dimensions
65 * 30 * 12 mm ( W * D * H , not include Antenna )
Weight
38 g ( not include Power )
Regulatory Approvals
CE / FCC
RoHS
