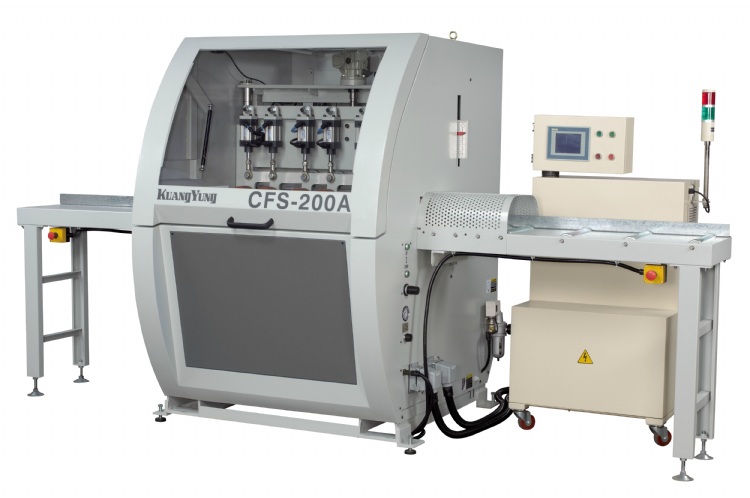

Semi-Optimizing Cut-Off Saw
Model: CFS-200A
Category: Woodworking Machinery Industry / Sawmill Machinery / Circular Saw Bench
Characteristics
a. Heavy duty type semi-optimizing cut-off saw.
b. Working with the optional lateral auto infeed table can increase productivity by 10%.
c. Suitable for processing long or heavy lumber.
d. Maximum feed speed can reach up to 200M/Min.
e. Adopt Mitsubishi servo motor and drive, providing high torque and high stability.
f. Five infeed and two outfeed pressure rollers, ensures long and heavy boards stability and accuracy.
g. Colored touch screen operation with icon guidance. Easy to recognized and operate.
h. Connecting with USB flash drive to output the production data to Excel file is available.
i.(Optional) Servo motor drive cut is available. Provide the efficiency and no compressed aire consumption compare to the penumatic cut.
Specifications
Saw motor ：10 HP
Feed motor ：3.5 Kw
Saw arbor speed(50Hz/60Hz)：4000 r.p.m./4100r.p.m.
Feed speed：20~200 M/min
Maximum circular saw diameter：540mm(21")
Bore of circular saw：40mm
Height of bed (H)：900mm
Mini. feed material：300mm
Maximum table load: 40kgs
Air compressed (Consumption):7~9kg/cm²(200M³/hr)
Diameter of dust collector inlet: φ150mm×2/φ100mm×1
Machine weight:1250kgs
Machine dimensions(L×D×H):1300×1450×1460mm(without roller table)
