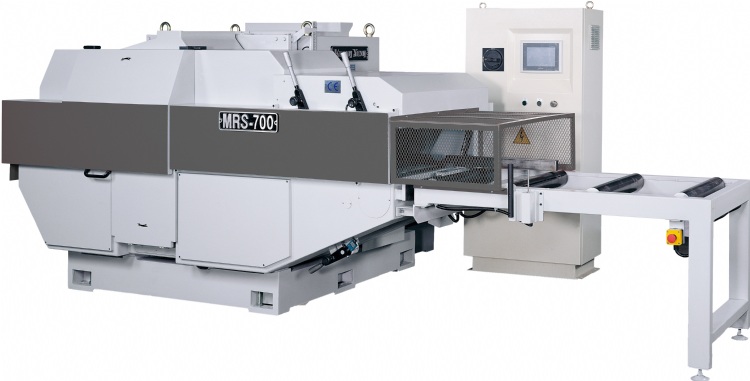

DOUBLE ARBOR MULTIPLE RIP SAW
Model: MRS-700
Category: Woodworking Machinery Industry / Sawmill Machinery / Gang Rip Saw
Characteristics
The pneumatic infeed roller is especially ideal for feeding heavy workpieces. 5 rows of anti-kickback fingers (two rows independently mounted, one row at the table, and two rows at the feed roll) prevent workpiece kickback.
This machine is designed and engineered for the first and second stages of the material preparation after log is cut. Ideally suited for pallet, building material and door frame manufacturing. It provides great cutting capacity up to 220mm thick and can replace a band saw.
Human/Machine Interface
The machine employs a powerful PLC for user friendly operations. It also features self diagnostic function for convenient troubleshooting. The touch sensing screen gives convenience for operation control.
Specifications
Max. cut thickness ：220 mm (8.661")
Max. cut width ：350 mm (13.779")
Distance from column to link chain center： 345 mm (13.583")
Mini. working length： 900 mm (35.433")
Max. sawblade diameter： Ø350 mm (14")
Mini. sawblade diameter ：Ø250 mm (10")
Sawblade bore ：Ø70 mm (2.756")
Saw arbor diameter： Ø55 mm (2.165")
Saw arbor speed：3500 r.p.m.
Saw arbor motor ：2×50, 60, 75, 100 or125 HP
Variable feed speed (for electrical amperage display)： 4∼25 M/min (13'-82'/min)
Feed motor ：5 HP
Hold down roller elevating motor：0.5 HP
Table height：840mm（33.07")
Table area (L×W) ：2630mm × 750mm（104"×29")
Overall dimensions(L×W×H）：2700×2400×1720 mm(106"×94"×68"）
Packing dimensions（L×W×H)：2970×2520×1900 mm(117"×99"×75"）
Net weight：5150kgs
Gross weight：5600kgs
