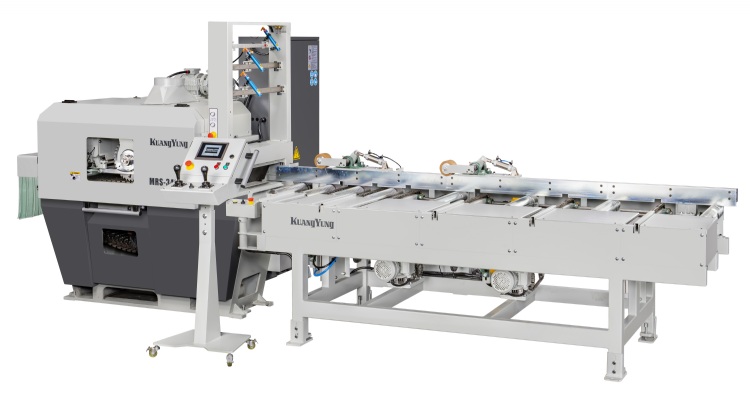

MOVABLE RIP SAW
Model: MRS-340M
Category: Woodworking Machinery Industry / Sawmill Machinery / Gang Rip Saw
Characteristics
．Saw blade moving controlled with joystick with laser guidance. Area optimize or avoid defect optimize ripping available to reach the best yield effect.
．Maximum movable saw 3 sets and can installed many fixed blades. Complete single board of fixed width and edging in once. One machine can replace 2~3 single rip saws.
．Use colored touch screen for operation. Icon guidance for operation. Easy to learn.
．Availability and current usage can put in statistics. Can be calculated to carbon emission for ESG and net zero emission trend(optional)
．Higher yield increased 7%~10% compared to traditional gang rip saw.
．Single person operation available. Skilled technicians are not required.
．Operator position safe. No industrial safety risks caused by wood kickbacks.
Specifications
Maximum cutting thickness for movable saw mode: 14" 100mm(4")/ 12" 75mm(3")
Minimum working length: 1.1M(3.6')
Maximum working length: 3.6M(12'),4.8M(16')(optional)
Movable saw traverse (from fixed saw) : 20mm~340mm(0.79"~13.38")
Maximum saw blade diameter: φ355(14")
Minimum saw blade diameter:φ305(12")
Saw arbor motor: 30HP, 40HP, 50HP or 60 HP
Feed motor:12~40m/min
Hold down roller elevating motor:1/2HP
Saw arbor elevation motor:1/2HP
Dust suctioin bore diameter:φ100mm×1,φ200mm×1
