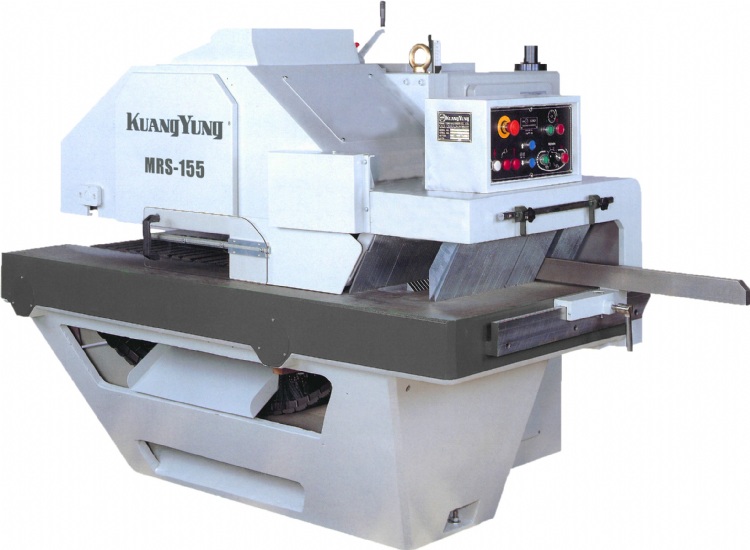

Multiple Rip Saw
Model: MRS-155
Category: Woodworking Machinery Industry / Sawmill Machinery / Gang Rip Saw
Characteristics
Extra Robust 100 HP motor
Great Cutting Thickness of 155 mm (6.1")
Continuous duty 100 HP arbor motor allows deep cutting speeds of thick lumber
MRS-155 has a massive cast iron base, composing the majority of total machine weight of 2700kg. This design provides incredible absorption characteristics under deep cutting, especially while performing thick lumber ripping with a multi-blade set up.
Precision chain and rails (dip chain) system facilitates accurate cutting operations.
Specifications
Max. cutting thickness ：155 mm
Max. cutting width ：350 mm
Distance of fixed inside blade to column ：380 mm
Min. working length： 700 mm
Max. sawblade diameter： 450 mm (18")
Min. sawblade diameter：355 mm (14")
Sawblade bore： 70 mm
Saw arbor diameter： 55 mm
Saw arbor speed (using 14"-16" saw blade)： 2500 rpm
Saw arbor speed (using 16"-18" saw blade)： 3000 rpm
Saw arbor motor ：75 HP or 100 HP
Feed motor： 3 HP
Variable feed speed (variable speed)： 2.5-24 M/min
Powered raise and lower of roller group： 1 HP
Dust hood dia.： 200 mm
Table height (Pass line)： 745 mm
Table area (L x W) ：1840 x 790 mm
