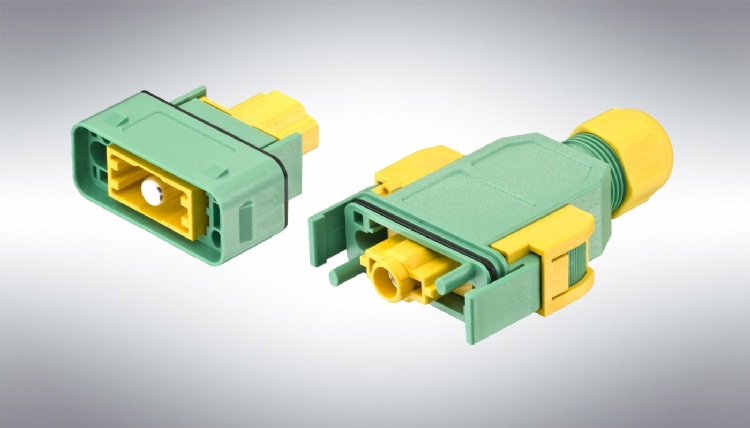

Connector for Grounding Systems
Model: Han® GND
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Connectors
Characteristics
Han® GND (Han Ground) is the innovative HARTING solution for potential equalization. The new connector series makes it possible to execute grounding systems in a pluggable design for the first time. The use of connectors has been well-established in the electrical cabling of machines and systems for many years. The advantage is quick and error-free commissioning. Potential equalization lines are still being permanently connected, however, which is relatively time-consuming and can be subject to errors. HARTING's remedy: the Han® GND. The single-pole connector in the robust IP 65 plastic housing is designed for stranded wires from 10-35 mm² and is optionally available in crimp or axial screw termination. The latter has the advantage that the lines can be connected without a special tool. A simple screwdriver is all it takes to achieve a quick and easy reliable connection. Extra connector mating security can be provided by the use of additional locking elements that prevent unintentional opening.
Specifications
Advantages
- First connector to offer pluggable potential equalization
- Narrow, space-saving design
- Economical plastic housing
- IP 65
- Separate axial screw contacts that are connected direct to the stranded wire without special tools
