Anti-Smudge (AS) coater
Model: NO
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Surface Finishing Equipment
Characteristics
Production Description
Creating Nanoanti-smudge /anti-fingerprint membrane surface self-cleaning (self-cleaning) has a double thinning effect (hydro / oleo phobic) on film and is used in anti-fingerprint touch panel glass and anti-fingerprint metal. In addition to anti-fingerprint applications, it can also be used as a nano coating to protect from rust, stains, and acid.
Product Features
Suitable for different anti-smudge solutions, and the water contact angle can reach 110~120º
High mass production rate
In-line coating production is available
Low AS chemical cost
Advanced AP plasma treatment included
High film quality with higher than 3000 times the abrasion test

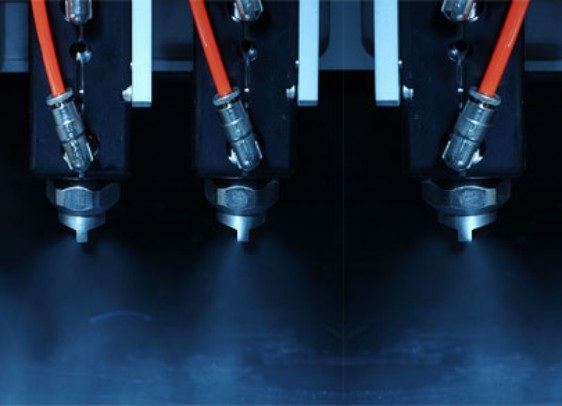

Liquid flow control for AS spray coating
Industry Applications
Protective glass for touch panel, protective film for TV, transparent anti-finger substrate, E-paper, PDA, anti-finger for glasses, mouse, and USB, anti-rust for PCB, decrease lost by friction.
Specifications
Model number |
AS 750 Specifications |
||
No. |
Item |
Specifications |
|
1 |
Dimensions (W*D*H) |
4500*1350*2203mm |
|
2 |
Weight |
~2000kg |
|
3 |
Effective Width |
750mm |
|
4 |
Production Speed |
0.5m ~ 1 M/min |
|
5 |
Pass Line |
980mm ± 20mm |
|
6 |
Feed Methods |
l From right to left |
|
7 |
Number of Spray Nozzles |
3pcs |
|
8 |
Chemical Consumption |
8~12g/min (per spray nozzle) |
|
9 |
Tank |
2*Volume 5L |
|
10 |
Liquid Dosage Control |
Automatic liquid dosage control deviation ± 0.5g |
|
11 |
Plasma |
Specifications CNT-SAP006 R80Q |
|
|
|
Output Power |
1000~1500W |
|
|
Clean Height |
1-3mm |
|
|
N2 (For plasma) |
Purity: 99.99% |
