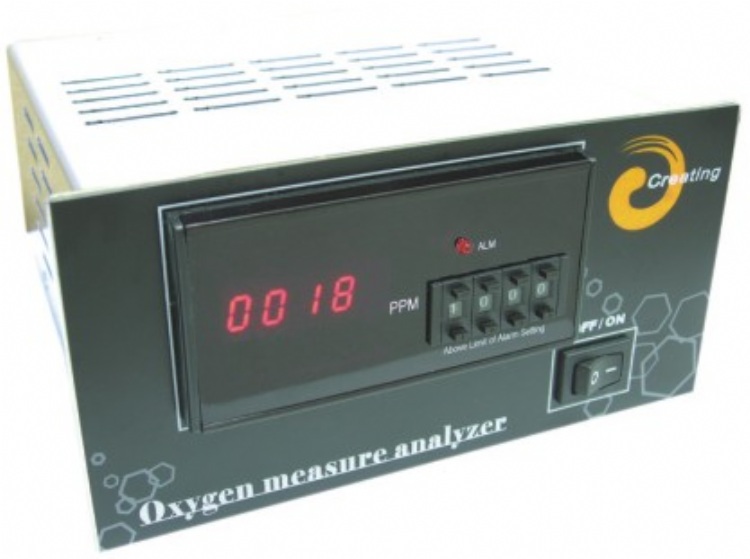

Oxygen Measure Analyzer
Model: COA011
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
Function
Mainly used to measure the amount of gas containing oxygen or nitrogen concentration.
Features
•Using zirconium oxide sensing technologies and offers exceptional accuracy and stability.
•Small dimension.
•Exceptional speed of response.
•Easy maintenance and operation.
•Measure from 50ppm to 1000ppm oxygen.
Application Industry
•Reflow furnace.
•Glove box.
Specifications
|
Item |
COA011 |
|
Dimensions |
150(W)*158(D)*75(H)mm |
|
Weight |
<1Kg |
|
Measuring Gas |
Oxygen |
|
Measurement Method |
Limiting current method using Zirconia Solid-Electrolyte |
|
Measurement Range |
50 to 1000 ppm O2 |
|
Sampling Method |
gas diffusion |
|
Accuracy |
within +/-5%FS O2 |
|
Response Time |
within 90 sec.(90% value) |
|
Warming-up Time |
about 5 min. |
|
Power Supply |
115V~230V |
|
Power Consumption |
about 5 watts |
|
Operating Temperature |
-10 to 50 degree C |
|
Operating Humidity |
0 to 85%R.H. |
|
Flow rate |
200~1000 cc/min |
