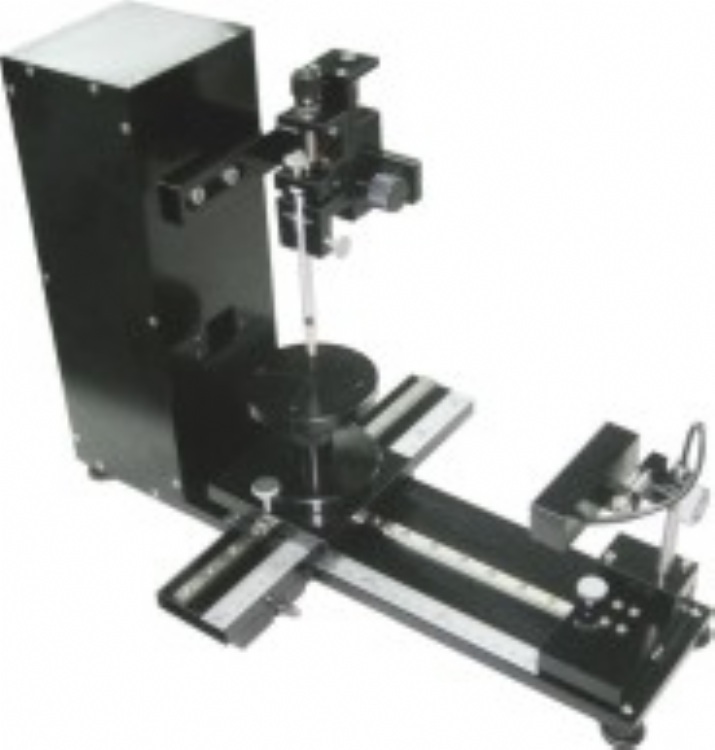

Contact Angle Meter
Model: CAM120
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
Production Description
You can measure the average angle of droplets, droplet’s left angle, droplet size, droplet diameter, static / dynamic measurements and so on. After the measurements are taken, data can be stored into EXCEL files and plotted curves.
Unique Functionalities
Creating Nano’s CAM120 Contact Angle Meter supports the vacuum plasma process.
Product Features
CAM120’s main function is to measure the liquid and drips and falls of the contact angle of the base plate, and then perform characteristic analysis before and after dealing with the base plate surface.
Lightweight and does not take up much space
The natural light of high brightness, long life of LED lights
Easy to understand the software’s user interface
The lift platform can be set to XY axis movement to measure a wider range of substrate dimensions
No external power cord(USB cable alone can be used for sufficient power supply)
Applicable to a wide range of operating systems
Application industry
Printed circuit board (PCB) or electronic components on the inspection of organic pollutants
Solid surface of the water-based analysis of affinities
Various types of substrate, surface inspection
The application of biology-related research, ex. The characteristics of protein analysis and detection
Specifications
▼Hardware Specifications
|
Specifications |
CAM120 |
|
Optical System |
CCD Camera |
|
Size (L*W*H) |
410*250*300mm |
|
Weight |
3.5kg |
|
Power |
USB 2.0 (without additional power) |
|
Sample stage |
Height：80 mm, Diameter：80 mm |
|
Specimen size (L*W*H) |
∞*170*60 mm |
|
Resolution |
800*600 pixels |
|
Light source |
LED lamp (The sensitivity can be adjusted by software interface) |
|
Adjustable range for stage |
X:140 mm Y:240 mm Z:10 mm |
|
|
|
▼Software Specifications
|
Specifications |
CAM120 |
|
Operating System |
Windows XP SP2 Windows Vista Windows 8 Microsoft.NET Framework 2.0 |
|
Measuring Methods |
Static measurements (average contact angle, left / right contact angle) Dynamic measurements, measure droplet size & droplet diameter |
|
Measuring Range |
0~180° |
|
Image Format |
AVI file Set up capture time for the image by user The Contact Angle can be measured any one frame picture of the AVI file |
|
Data Measure |
Measured data saved in Excel Measured data can be drawn in a curve graph & saved as a JPG file Support the analysis of a large amount of data |
|
Surface Free Energy |
Calculation methods: (a) Owens method (b) Wu method (C) Oss & Good method Database with liquid parameters can establish their own parameters of liquid. |
