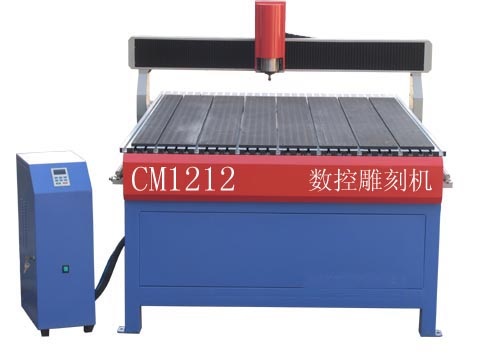

CNC Engraving Cutting Machine
Model: CM-C3030/6090/1212/1218/1224/1325/2030
Category: Woodworking Machinery Industry / Others / Other Woodworking Machines
Characteristics
Feathers:
-Control system and Driver : High speed control system, High Subdivision Driver.
- Internally designed framework, working stably, economical and practical.
-Advanced original software completely compatible with Windows 2000&XP&Vista&7.
-Optional parts: Rotary and Absorbing Device and dist collector
-With 2 USB interfaces, supporting offline working
Applicable Materials :
Non metal Materials: Wood/Acrylic/Plastic/PVC/Marble/Glass/CD, etc.
Metal Materials: Gold/Silver /Copper/Steel/ Aluminum, etc.
Specifications
Model |
CM-C1325 |
Work Area(mm) |
1300 x 2500 |
Spindle Power(KW) |
1.5/2.2/3.0/4.5/6.0 |
Bed Type |
T Slot with water tank or Vacuum optional |
Machine Frame |
Aluminum Or Steel Structure Optional |
X, Y Structure |
Rack and Pinion transmission, |
Z Structure |
Imported ball screw made in Germany |
Spindle Model |
Water Cooling or Air cooling HSD Italy Optional |
Spindle Engraving Speed |
0-36000mm/min |
Resolution Working Accuracy |
±0.0064mm |
Repositioning Accuracy |
±0.01mm |
Minimum shaping character |
Letters 1x1mm |
Power Supply (V) |
110/220/380/440 Optional |
Drive Motors |
Stepper or Servo Optional |
Graphic Formats |
BMP, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, DWG, DXF |
Dimensions (m) |
3.2x2.2 x1.8 |
Weight (kg) |
850 |
