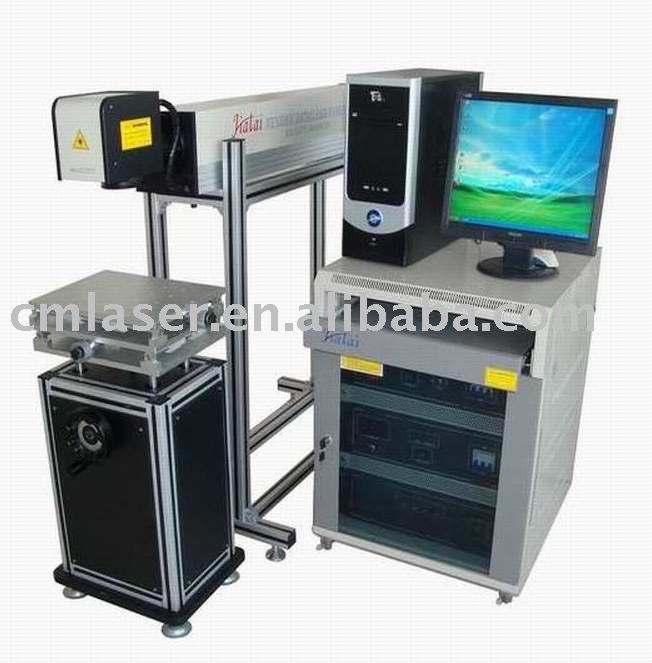

Co2 laser marking machine
Model: CM-L50W Co2 laser marking machine
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Laser Cutting & Engraving Machines
Characteristics
Features
USB port interface
Focusing is simple and quick
All models feature a red dot alignment pointer, helping you to properly position your work under the laser head
High marking speed, low power consumption and processing cost.
Application
All kinds of non-metal materials, widely used in electrical communication, clock, glasses, plastic, signs, package, artwork, leather, lumber, textile, decorating industries for the character engraving on the 3M label, packages, woodwork surface, plastics, acrylic and so on..
Specifications
|
Model |
CM-CO2 Laser Marking Machine |
|
Working Size |
110*110mm |
|
Red Dot |
Yes |
|
Laser type |
CO2 glass or radio frequency laser tube |
|
Laser Power (Watts) |
50W |
|
Machine power |
1.5KW |
|
Laser wavelength |
1064nm |
|
Marking speed |
3000mm/s |
|
Marking depth |
≤ 2mm (depends on the Materials) |
|
Minimum line width |
0.01mm |
|
Minimum character |
0.1mm |
|
Repeatability precision |
±0.001mm |
|
Power Supply (V) |
110/220/380/440 Optional |
|
Cooling type |
water cooling |
|
Temperature |
5°C）to 40°C |
|
Humidity |
5% to 75% |
|
Drive Motors |
Stepper or Servo Optional |
|
Graphic Formats |
BMP, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, DWG, DXF |
|
Dimensions (m) |
2.0 x1.9 x2.2 |
