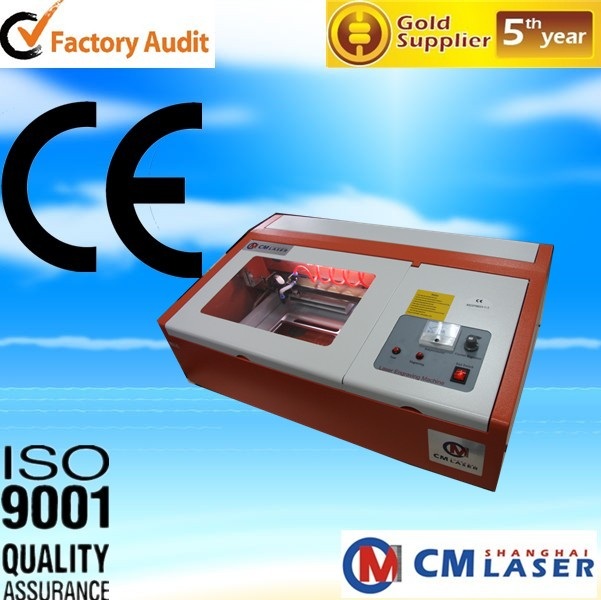

Laser stamp making machine
Model: CM-L40W 2525/3030/4540
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Laser Cutting & Engraving Machines
Characteristics
Equipment Features
The equipment is the collection of computer, the laser, the automated control system and the precised machinery. It's performance advanced, adopt computer typesetting, running stable, easy operation, with good software compatibility.
Applicable Industry
The products are widely applies to the industry of Seal, Present, Advertisement, Arts and Crafts, Electronic Packing and other industries.
The applicable materials
plexiglass, wood, MDF, cardboard, two-color plate, leather,glass,synthetic crystal, horn, plastic, printing rubber and other non-metal materials.
Specifications
Model |
CM-L40 Laser stamp making machine |
Engraving Area |
250*250mm |
Laser Power |
less than or equal to 40W |
Engraving Speed |
0-500mm/s / 19.7in./s |
Cutting Speed |
0-50mm/s / 0-1.97in./s |
Cutting Depth |
4mm/ 0.157in. |
Minimum Shaping Character |
1 X 1mm / (0.04 X0.04)in. |
Resolution Ratio |
0.0254mm / 0.001in. (1000dpi) |
Power Supply |
220+/-10% 50HZ(110V Transformer optional) |
Resetting Positioning |
Accuracy less than or equal to 0.01mm / 0.0004in. |
Gross Power |
500W |
Motor Type |
Stepper Motor |
Communication Interface |
USB 2.0 |
Graphic Format Supported |
PLT/DXF/BMP/JPG/GIF/PGN/TIF |
Software Supported |
Moshi |
Water Cooling(Yes/No) |
Yes |
Maximum Height Of Materials To Engrave(mm) |
80mm / 3.1in. |
Recommended Spare Parts/Consumables |
Laser Tube, Focus lens Reflection lens |
Net Weight |
35-49KG |
Shipping Weight |
50-85KG |
