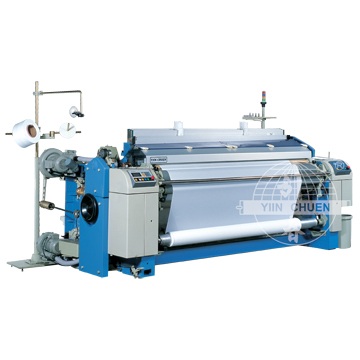

Two Pump Three Nozzle Dobby Shedding Water Jet Loom (With Electronic Measuring & Storage System)



Model: JW-871H

Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Other Textile Machines



Online Inquiry





Characteristics



description:
JW-673CH-2P is new model based on the JW-871 series structure ,with excellent feature in vibration reduction . It can use three quite different kinds of yarn as weft simultaneously, and weaves a wider range of fabrics from general clothing to thick & high density fabric . The optional new Electronic Let Off (ELO) and Electronic Take-up (ETU) system can mounted on this machine when weaving high quality & value-added fabric .

The plain shedding device ,single-pump two nozzle electronic measuring and storage system,
two-pump two nozzle electronic measuring and storage system are optional parts for this model.

Specifications:
1) Reed width: 170, 190, 210, 230, 250cm
2) Filling insertion rate: 2,280m/min max.
3) Head frame:
a) Plain Shedding : 8pcs max.
b) Dobby shedding: 16pcs max.
4) Power: 3.5kw, 4.6kW
5) Weft density: 5 ~ 60picks/cm
6) Rotational speed: 1,200rpm max.

Yarn:
1) Nylon-6 filament
2) Nylon-6 non-sizing
3) Polyester filament
4) Polyester draw textured
5) Polyester spun yarn
6) Polyester high twisting yarn
7) Polyester POY
8) Polyester non-sizing filament
9) O.P. yarn
10) Taslon yarn
