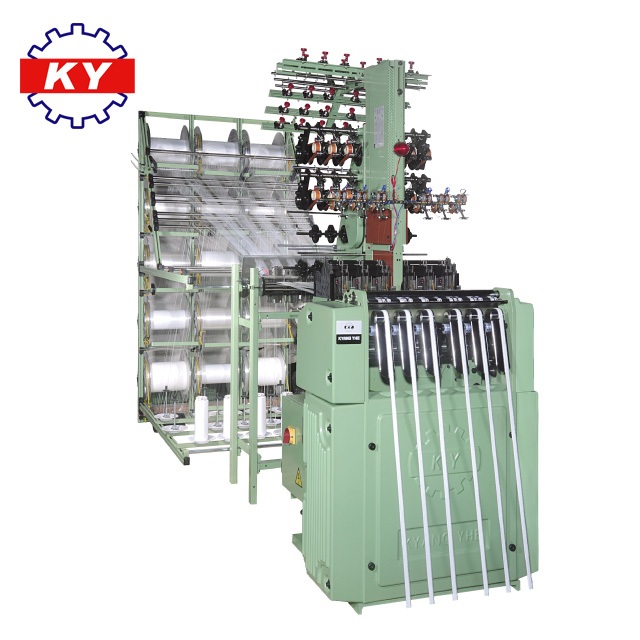

High speed automatic needle loom
Model: NDF6/45
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Braiding Machines
Characteristics
Newly design stand and side plate provide strong stability of the machine which increased the speed and the production capacity.
By using the common size shedding lever, it can reduced the working pressure and noise of the machine, it can also increase the machine stability and life time.
By moving the shedding frame forward 10mm, it can increase the height of the shedding frame for producing thicker tape, it can also shorten the time of adjustment and improve the efficiency.
The cover of the machine is made by ABS material and a front cover are added to meet the international CE standard.
The tension spring of the frame has change to covered design to increase the tension and the life time of the spring as well as the life time of the shedding frame and the machine.
The dropper sensor has changed to the micro relay to increase the sensitive of the dropper.
The yarn feeder's plate has redesign to steel spring, it will be more smoothly for the yarn passes at high speed.
Specifications
Model: NDF6/45
Output: 6pcs
Reed Width: 45mm
Shadding Frame: 16~20pcs
Chain Link: 48pcs
Power: 1.5HP
Speed: 1,200-1400 RPM
