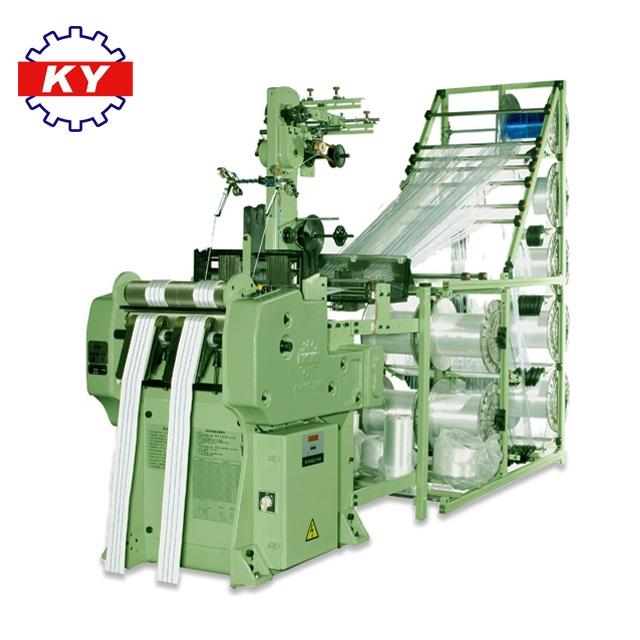

High speed automatic needle loom
Model: KDN 2/110-MG
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Braiding Machines
Characteristics
Material of reed arm adopts forging aluminum.
Slightly increasing the opening of shedding lever to facilitate adjustment.
Using specific tape bracket for weaving heavy duty tape.
Adopt rigid driving to strengthen the power of roller.
Equip two-speed motor.
Heighten and thicken the front reed to strengthen weaving.
Equip preload type of warp stop motion to steady yarn tension upon weaving.
Specifications
Model: KDN 2/110-MG
Output: 2pcs
Reed Width: 110mm
Shadding Frame: 16pcs
Chain Link: 40pcs
Power: 1.5HP
Speed: 800 RPM
Weft density: 3.5-36.7cm
