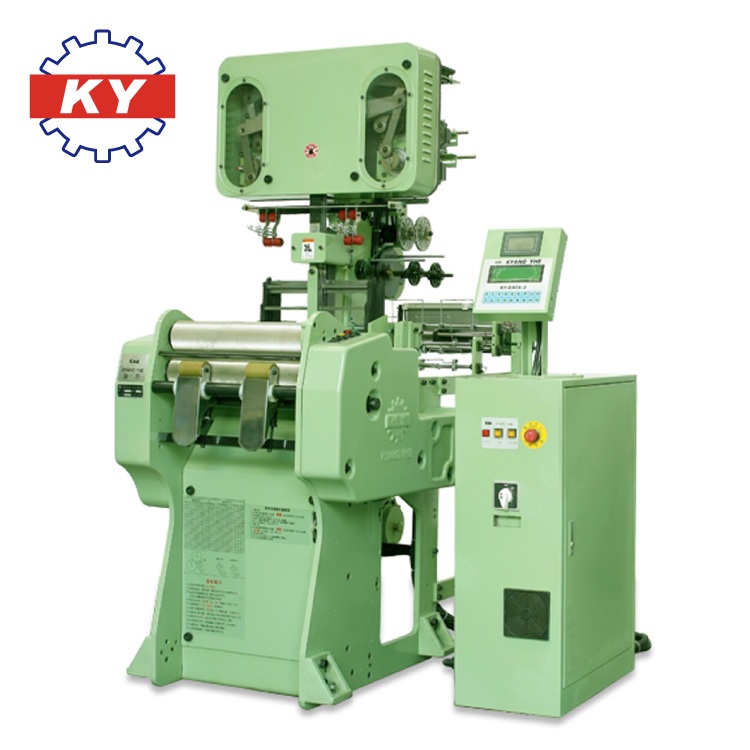

Electron frame high speed automatic needle loom
Model: KDN 2/65 SF2
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Braiding Machines
Characteristics
The stand and the side board are all in one structure to increase the stability.
14 shedding frame, the first 2 are control by serve motor, enable to adjust the shed lift freely, unlimited cycle, program the organization. The rest of the shedding frames are high shed lift for easy adjustment to produce.
New tension control device can improve the yarn sending.
Catch thread are drive by cam automatically, suitable for high speed performance.
Reed stand are made by cast component, lighter and stronger, suitable for high speed performance.
Yarn feeding device are motivated from the center pillar to even the motion to increase the stability.
Aluminum wheel type weft yarn feeder.
Motor on the fixed axle, easier to adjust the motor.
Single direction bearing FCB40 are used in the transmission.
Shedding lever seal has changed to Nylon material for better performance in oil seal.
Shedding lever spring is adjustable to production need.
Side cover uses ABS material for environment protection and better outlook.
Specifications
Model: KDN 2/65 SF2
Output: 2pcs
Reed Width: 65mm
Shadding Frame: 14pcs
Power: 1.1HP
Speed: 500 RPM
Remark:2pcs electronic fram, 12 heald frame. 1 set of 1.1KW brake motor/ 2 sets of 0.75KW server motor
