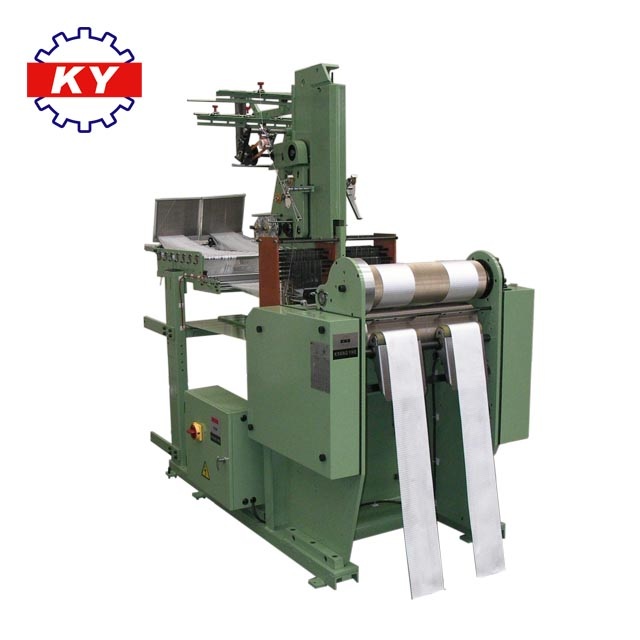

Heavy narrow fabric weaving machine
Model: NDM 2-135G
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Braiding Machines
Characteristics
Raising high-speed running stability, strengthening the overall structure of the fuselage; can weave 3MM ~ 5MM thick tape.
Both sides frame changes into frame and leads the integrative type of the board. Reduce and weave the time to change the heath , improve working efficiency.
By using the gear type transmission on the weft density control, the pulling of the take off will be increased.
To enhance the lubrication system; machine installations positive lubrication system.
Binder thread transmission through aluminum wheel to improve the flatness as weaving. Add the function of selvedge-lock for double binder.
Strengthen the maintenance and durability of shaft of wheel . The shaft is adopted indirect eccentric adjustment.
Needle bracket and take off roller increased the humanized design of safety cover, conform to CE certified.
Specifications
Model:NDM 2-135G
Output: 2pcs
Reed Width: 135mm
Shadding Frame: 12pcs
Chain Link: 36pcs/Cam System
Power: 2.2KW
Speed: 300-500RPM
Weft density:2.46-11.67cm
