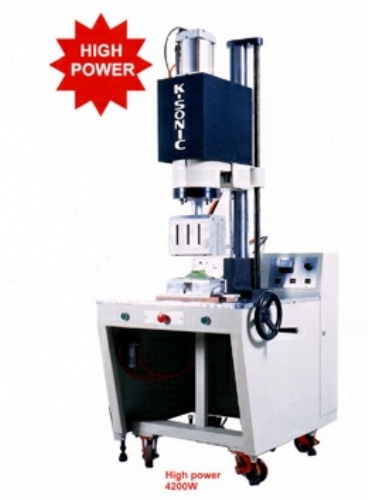

ULTRASONIC PLASTIC WELDER
Model: KWL4215
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Ultrasonic Plastic Welding Machines
Characteristics
1.IC control circuit and automatic frequency tracking system.
2.Accurate Digital switch provided, 1/100 scale adjustment.
3.With permanent auto control indication of either abnormal
overload or normal operated parameters conditions.
4.Prismatic column ensuring accuracy of adjustment repeatability.
5.Automatic horizontal level device and precised micro-switch.
Provided horn and nest fitting accurately.
Specifications
Output(W) ：4200W
Frequency(KHz)：15 KHz
Line Source ：3P 220V 20A
Control ：Auto Tracking
Over Load Protection：Overload indicating Lamp,Run off
Air Cylinder(bore x stroke)：100 Φ x 100
Height Adjustment(from booster)：565mm(595 - 30)
Dimension(mm) ：920 (L) X 900 (W) X 1990~2240 (H) Max.
Weight(kg) / Column(Φ) ：300kg/100Φ
Welding Capacity(mm) ：20 (W) x 420 (L)
