INTELLGENT SERIES

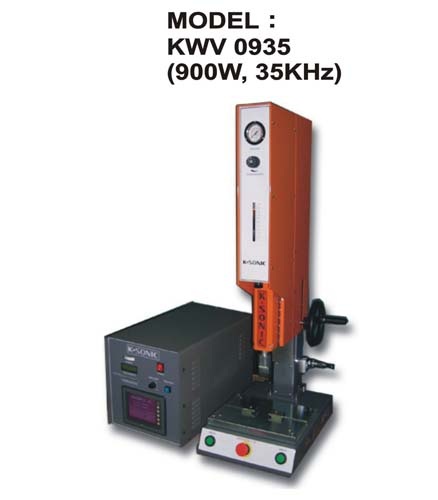

Model: KWV-0935
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Ultrasonic Plastic Welding Machines
Characteristics
●Automatic tuning frequency control.
●Start-up automatic Low-voltage self-checking system.
●Overload protection.
●Constant energy.
●Position detected.
●Flexible pressure & adjustable cushion position.
●
Specifications
OUTPUT：９００Ｗ
FREQUENCY：３５KHz
LINE SOURCE：220V 1P 10A
CONTROL：AUTO TUNING
OVERLOAD PROTECT：OVERLOAD PROTECT & ALARM BUZZER
AIR CYLINDER：40Φ
WORKPIECE MAX.HEIGHT：200mm
GENERATOR DIMENSION：300(L) x 540(W) x 330(H)mm
MACHINE DIMENSION：320(L) x 470(W) x 1140(H)mm
GENERATOR WEIGHT：25kg
MACHINE WEIGHT：40kg
WELDING CAPACITY：20 x 50mm
