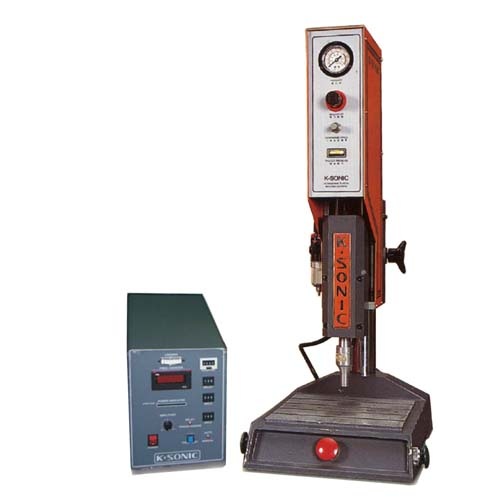

ULTRASONIC PLASTIC WELDER VCO SERIES
Model: KWS-0935
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Ultrasonic Plastic Welding Machines
Characteristics
●Automatic tuning frequency system
●Voltage Control oscillation
●Start-up automatic low-voltage self-checking system
●MOS-FET power control
●Frequency counter
●Overload protection device & buzzer
●Power LED variable adjust
Specifications
OUTPUT：９００Ｗ
FREQUENCY：３５KHz
LINE SOURCE：220V 1P 10A
CONTROL：AUTO TUNING
OVERLOAD PROTECT：OVERLOAD PROTECT & ALARM BUZZER
AIR CYLINDER：32Φ
WORKPIECE MAX. HEIGHT：200mm
GENERATOR DIMENSION：240(L) x 500(W) x 300(H)mm
MACHINE DIMENSION：340(L) x 480(W) x 760~1020(H)mm
GENERATOR WEIGHT：18kg
MACHINE WEIGHT：30kg
WELDING CAPACITY：20 x 50mm
