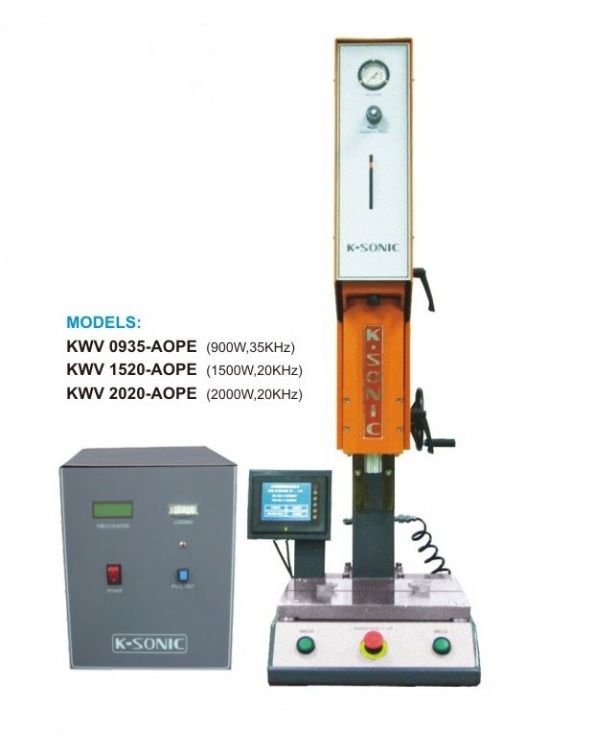

AOPE Series ULTRASONIC PLASTIC WELDER
Model: KWV 0935-AOPE
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Ultrasonic Plastic Welding Machines
Characteristics
● Automatic tuning frequency control (Voltage control oscillation)
● Resonance frequency range protection
● Frequency automatic checking with low-voltage on power
● MOS-FET power control
● Frequency counter
● Overload protection device & buzzer
● Resonance frequency compensation in loading & no loading
● Resonance frequency display
● Power LED variable adjust
Specifications
|
SERIES |
INTELLIGENT |
||
|
Model |
KWV0935 |
KWV1520 |
KWV2020 |
|
Output(w) |
900 |
1500 |
2000 |
|
Frequency(KHz) |
35 |
20 |
|
|
Line Source |
230V IP 10A |
||
|
Ultrasonic System |
Auto Tuning |
||
|
Overload Protect |
OVERLOAD PROTECT & ALARM BUZZER |
||
|
Air Cylinder |
32Ø |
63 Ø |
80 Ø |
|
Workpiece Max. height(mm) |
200 |
360 |
|
|
Generator Dimension(mm) |
300 x 540 x 330 (L x W x H) |
||
|
Machine Dimension(mm) |
320 x 570 x 1140 |
400 x 695 x 1120 |
|
|
Generator Weight |
25Kg |
||
|
Machine Weight |
40Kg |
120Kg |
|
|
Welding Capacity(mm) |
20 x 50 |
65 x 160 |
90 x 160 |
