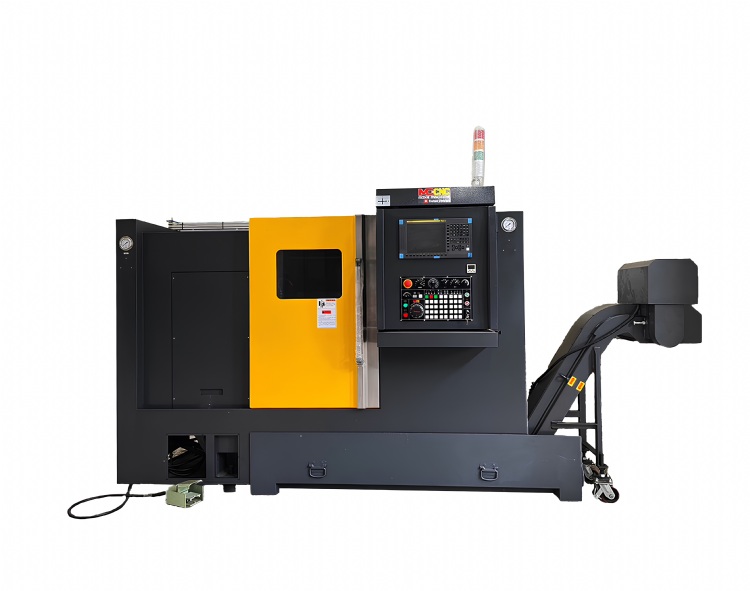

Slant Bed CNC Lathe (linear ways)
Model: MC-8500L
Category: Machine Tools / Lathes / CNC Lathes, Slant Bed Type
Characteristics
Product Description (~yz)
(A )Less space occupationBefficient chip removal and the extra wide box ways on X, Z-axis feature extra high stability.
(B)The base is ruggedly constructed for greater stability and rigidity. It exhibits exceptional dynamic stability especially in heavy cutting.
(C) Lifetime accuracy, once you enter the program that you need, then there will be no inaccuracy.
(D) All structured parts are manufactured from high quality Meehanite cast iron, tempered and stress relieved to ensure deformation for years.
Specifications
Product Description (~yz)
|
||||||
Specification: |
MC-6500L |
MC-8500L |
||||
Swing over bed: |
470 mm |
470 mm |
||||
Swing over saddle: |
360 mm |
360 mm |
||||
Screw size: |
32 mm |
32 mm |
||||
Screw lead(X-axis,Z-axis): |
10 mm |
10 mm |
||||
Span(X-axis rail): |
184 mm |
184 mm |
||||
Span(Z-axis rail): |
328 mm |
328 mm |
||||
Max. turning diameter: |
240 mm |
240 mm |
||||
Max. turning length: |
462 mm |
462 mm |
||||
Max. distance between centers: |
600 mm |
590 mm |
||||
Spindle nose type: |
ASA A2-5 |
ASA A2-6 |
||||
Chuck: |
6” |
8” |
||||
Hole through spindle: |
56 mm |
62 mm |
||||
Spindle speed: |
6000 rpm |
4500 rpm |
||||
Spindle horsepower: |
11 kw /15hp |
11kw /15hp |
||||
Spindle horsepower Max. torsion: |
35.8 N-m |
35.8 N-m |
||||
Spindle horsepower Max. turning: |
1500 rpm |
1500 rpm |
||||
Spindle accuracy: |
0.003 mm |
0.003 mm |
||||
Bar capacity: |
45 mm |
52 mm |
||||
Z-axis travel: |
500 mm |
500 mm |
||||
X-axis travel: |
185 mm |
185 mm |
||||
Z-axis rapid traverse rate: |
20 M/min |
20 M/min |
||||
X-axis rapid traverse rate: |
20 M/min |
20 M/min |
||||
Number of tool station: |
12 |
12 |
||||
Tool size: |
20*20 mm |
20*20 mm |
||||
Boring tool size: |
32 mm |
32 mm |
||||
Tailstock travel: |
500 mm |
500 mm |
||||
Quill travel: |
80 mm |
80 mm |
||||
Quill diameter: |
70 mm |
70 mm |
||||
Quill taper: |
4 MT |
4 MT |
||||
Quill drive: |
Hydraulic |
Hydraulic |
||||
Tailstock positioning: |
Manual |
Manual |
||||
Machine Dimensions: |
2.6*1.62*1.85(M) |
2.6*1.62*1.85(M) |
