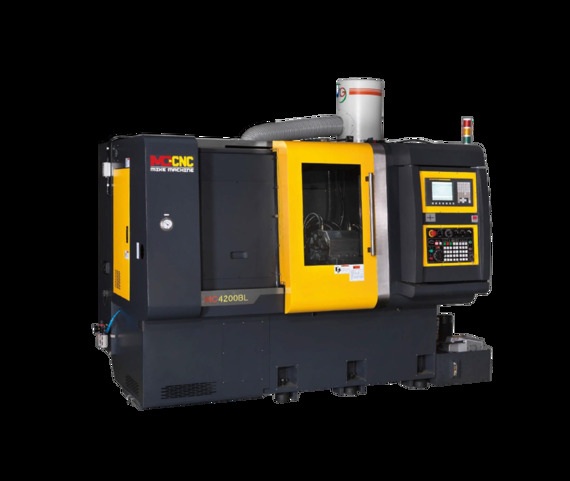

Hybrid Sphere CNC Lathes
Model: MC 4200BL
Category: Machine Tools / Lathes / Ball Valve Turning Machines
Characteristics
◎ One machine improves surface roughness and roundness and reduces processing time
◎ The X and Z axes adopt linear slide rails to provide high precision and stability.
◎ Spindle collet is stable and durable for precise machining
◎ Special rotation axis design enables true roundness to ±5μm,Suitable for processing spherical work pieces.
◎ Chip-free rolling process, no processing waste generated.
This model is an extension of the traditional hydraulic lathe Therefore, "Spherical special machine" is suitable for the manufacture of spherical workpieces, such as: auto parts with shafts (ball pins), ball valves, etc., and can also be used for the manufacture of spherical workpieces, viewed as a general standard of CNC lathe. It can reduce processing time, defection rate, cost and improve production efficiency.
☆ Suitable for the manufacturing of round outer diameter and ball workpieces, such as ball pins (ball valves), ball plugs, spherical bearings, fish eyes, etc.
Specifications
Main features of the machine
(A) 3 in 1 for general purpose, ball making and burnishing.
(B) Improving the surface, roundness and reduces the processing time.
(C) Meehanite Cast Iron: All structured parts are made of high quality Meehanite cast iron, tempered and stress relieved to ensure no deformation for years.
(D) Massive Base: Strengthen the inner base structure.
|
Model |
MC-4200BL |
MC-2200BL |
|
Swing over bed: |
∮300 mm |
∮300mm |
|
Screw size: |
∮32 mm |
∮32 mm |
|
Screw lead (X-axis, Z-axis): |
5/10 mm |
5/10 mm |
|
Max. turning diameter: |
135 mm |
135 mm |
|
Max. turning length: |
200 mm |
150 mm |
|
Spindle nose: |
ASA A2-4 |
ASA A2-4 |
|
Chuck size: |
Collect Chuck 筒型夾頭 |
Collect Chuck 筒型夾頭 |
|
Spindle bore: |
42 mm |
42 mm |
|
Max. spindle speed: |
6000 rpm |
6000 rpm |
|
Spindle motor power: |
7.5 kw |
5.5 kw |
|
Spindle motor Max. torsion: |
35 N-m |
37 N-m |
|
Spindle motor Max. turning: |
2500 rpm |
2000 rpm |
|
Bar capacity: |
30 mm |
30 mm |
|
Feed motor-X/Z/B-axis |
1.2 KW |
1.5 KW |
|
Z-axis travel: |
230 mm |
230mm |
|
X-axis travel: |
80+20 mm |
80+20 mm |
|
B-axis travel: |
-60/+95 |
-60/+85 M/min |
|
Rapid feed-Z/X-axis: |
15 M/min |
15 M/min |
|
Rapid feed-B-axis |
4 M/min |
4 M/min |
|
Number of tools: |
8 |
6 |
|
Tool shank size: |
20*20 mm |
20*20 mm |
|
Boring tool size: |
∮25 mm |
∮25 mm |
|
Coolant tank capacity: |
200 liter |
|
|
Dimensions (L*W*H): |
3.4*1.8*2.4 (M) |
3.4*1.43*1.97(M) |
