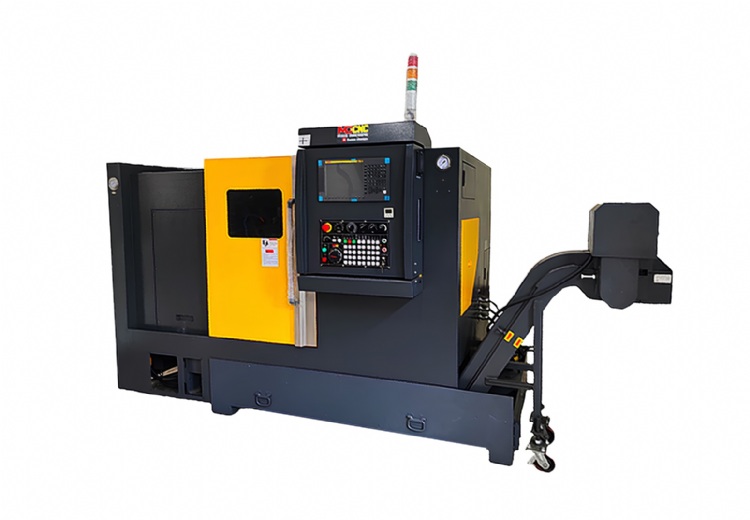

Slant Bed CNC Lathe (box ways)
Model: MC-8500H
Category: Machine Tools / Lathes / CNC Lathes, Slant Bed Type
Characteristics
◎45° Slant bed features maximum stability and efficient chip disposal.
◎ The of the high-rigidity linear rail adopts a roller type configuration, which has large load, fast shifting and high positioning accuracy
▲ The base has a stable structure, high rigidity, and reinforced special ribs to demonstrate unique dynamic stability during high-speed cutting.
★ Box Ways, ldeal for Heavy Cutting.
★ Linear Ways, Designed for High Speed Machining.
Specifications
|
Model 機型規格 |
MC 8500H / L |
||
|
Capacity 機械行程 |
Dia. Over Bed 床面旋徑 |
mm |
Φ470 |
|
Max. Turning Diameter 最大加工直徑 |
mm |
Φ230 |
|
|
Max. Turning Length 最大加工長度 |
mm |
480 |
|
|
Spindle 主軸 |
Spindle nose 主軸鼻端 |
ASA |
A2-6 |
|
Hydraulic Chuck Dia. 油壓夾頭 |
inch |
8” |
|
|
Max. Spindle Speed 最大轉速 |
RPM |
4500 |
|
|
Max Torque 最大扭力 |
Nm |
191 |
|
|
Axis Feeds X/Z 軸 |
X-axis Travel X 軸行程 |
mm |
140+20 |
|
Z-axis Travel Z 軸行程 |
mm |
500 |
|
|
Rapid Feed-Z/X-axis 軸向快速位移 |
m/min |
H20 |
|
|
Turret 刀塔 |
TYPE 型式 |
|
Hydraulic |
|
No. of Tools 刀具數 |
T |
8 |
|
|
Boring Tool Size 搪刀尺寸 |
mm |
25*25/Φ40 |
|
|
Tailstock 尾座 |
TYPE 驅動方式 |
|
Hydraulic |
|
Quill Dia. 尾軸管直徑 |
mm |
Φ70 |
|
|
Quill Stroke 尾軸管行 |
mm |
80 |
|
|
Cone 尾軸管錐度 |
mm |
MT4 |
|
|
Diemesions 尺寸 T3 |
Height 高 |
mm |
1760 |
|
Overall Size 占地面積 |
mm |
2950 x 1660 |
|
