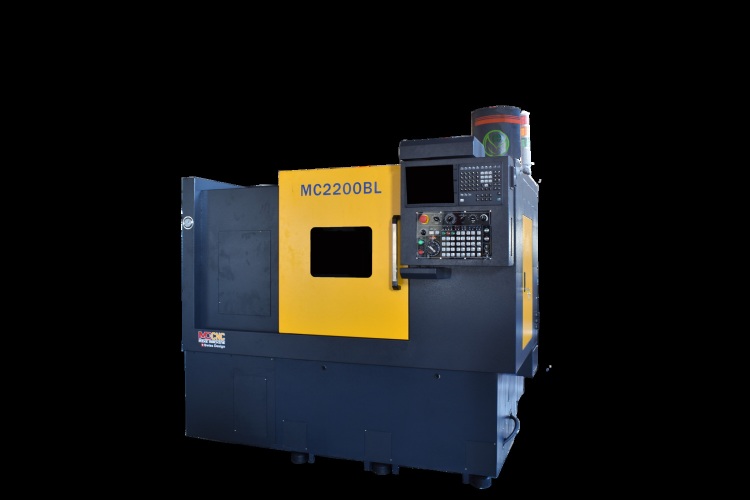

Hybrid Sphere CNC Lathes
Model: MC 2200BL
Category: Machine Tools / Lathes / CNC Lathes
Characteristics
This model is an extension of the traditional hydraulic lathe and combines the X and Z axes of a standard lathe. Therefore, becomes the CNC lathe (line rail).
"Spherical special machine" is suitable for the manufacture of spherical workpieces, such as: auto parts with shafts (ball pins), ball valves, etc., and can also be used for the manufacture of spherical workpieces, viewed as a general standard of CNC lathe. It can reduce processing time, defection rate, cost and improve production efficiency. The machining accuracy of the spherical shape is within 0.01mm, thus improving the roundness.
Specifications
(A) 3 in 1 for general purpose, ball making and burnishing. @bΡAy[uAus{@C |
(B) Improving the surface, roundness and reduces the processing time. ﵽWסAסF֥[uɵ{C |
(C) Meehanite Cast Iron: All structured parts are made of high quality Meehanite cast iron, tempered and stress relieved to ensure no deformation for years. ҦDcĥΰŦ̺~űKAg^OHTO[ܧΡC |
(D) Massive Base: Strengthen the inner base structure. ycíBʡAjƯSذAbdɡAi{WSʺAíwʡC |
Specification: |
MC-4200BL |
MC-2200BL |
Swing over bed: ɭۮ| |
300 mm |
260 mm |
Screw size: jp |
32 mm |
32 mm |
Screw lead (X-axis, Z-axis): ɵ{(Xb/Zb) |
5/10 mm |
5/10 mm |
Max. turning diameter: ̤j[u| |
135 mm |
135 mm |
Max. turning length: ̤j[u |
462 mm |
150 mm |
Spindle nose: Db |
ASA A2-4 |
ASA A2-4 |
Chuck size: Yؤo |
Collect Chuck Y |
Collect Chuck Y |
Spindle bore: Dbqծ| |
42 mm |
42 mm |
Max. spindle speed: Dbt |
6000 rpm |
6000 rpm |
Spindle motor power: DbO |
7.5 kw |
5.5 kw |
Spindle motor Max. torsion: DbF̤jO |
35 N-m |
37 N-m |
Spindle motor Max. turning: DbF̤jOt |
2500 rpm |
2000 rpm |
Bar capacity: ̤jΧqծ| |
33 mm |
30 mm |
Feed motor-X/Z/B-axis Xb/Zb/BbO |
1.2 KW |
1.5 KW |
Z-axis travel: Zb{ |
230 mm |
220 mm |
X-axis travel: Xb{ |
80+20 mm |
80+20 mm |
B-axis travel: Bb{ |
-60/+95 |
-60/+85 M/min |
Rapid feed-Z/X-axis: Z/Xbֳt첾 |
15 M/min |
15 M/min |
Rapid feed-B-axis Bbֳt첾 |
4 M/min |
4 M/min |
Number of tools: M |
8 |
6 |
Tool shank size: Mؤo |
20*20 mm |
20*20 mm |
Boring tool size: eMؤo |
25 mm |
25 mm |
Coolant tank capacity: ceq |
200 liter |
|
Dimensions (L*W*H): ~[ؤo(*e*) |
3.4*1.8*2.4 (M) |
2.7*1.45*1.83 (M) |
