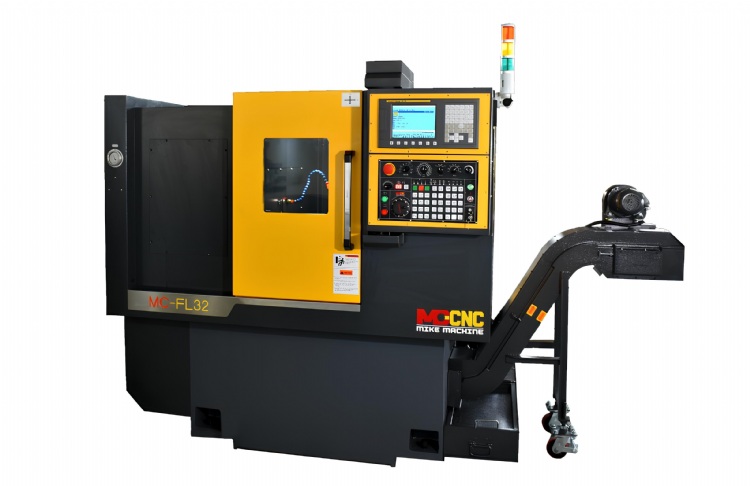

GANG TYPE CNC LATHE
Model: MC-FL32
Category: Machine Tools / Lathes / High Speed Precision Lathes
Characteristics
◎ In response to different processing needs, replace the appropriate tool configuration
◎ High-precision quick tool changing and cutting to improve processing efficiency
◎ Multiple tool holders + tool turrets can be installed at the same time
◎ Y-axis Side Milling Device, Complete processing in one go
◎ Professional customization and automated design
Specifications
|
Model |
Unit |
MC FL-32 |
|
|
Capacity |
Max. Turring Diameter |
mm |
Φ90 |
|
Max. Turring Length |
mm |
Φ135 |
|
|
Spindle |
Spindle Nose |
ASA |
A2-4 |
|
Chuck Size |
in |
5” |
|
|
Spindle Bore |
mm |
Φ33 |
|
|
Max. Spindle Speed |
rpm |
6000 |
|
|
Spindle Motor [cont./30min] |
kW |
7.5 |
|
|
Spindle Accuracy |
mm |
0.003 |
|
|
Bar Capacity |
mm |
Φ32 |
|
|
Axis Feeds |
Z-axis Travel |
mm |
150 |
|
X -axis Travel |
mm |
600 |
|
|
Rapid Feed Z-axis |
m/min |
15 |
|
|
Rapid Feed X-axis |
m/min |
15 |
|
|
Turret |
Tool Shank Size |
mm |
20*20 |
|
Boning Tool Size |
mm |
Φ25 |
|
|
Dimensions [L*W*H] |
m |
3*1.65*2.02 |
|
|
Weight |
kg |
2200 |
|
|
Coolant Tank Capacity |
Litter |
70 |
|
|
Accuracy |
mm |
±0.01 |
|
