BAND RESAWS–Trend

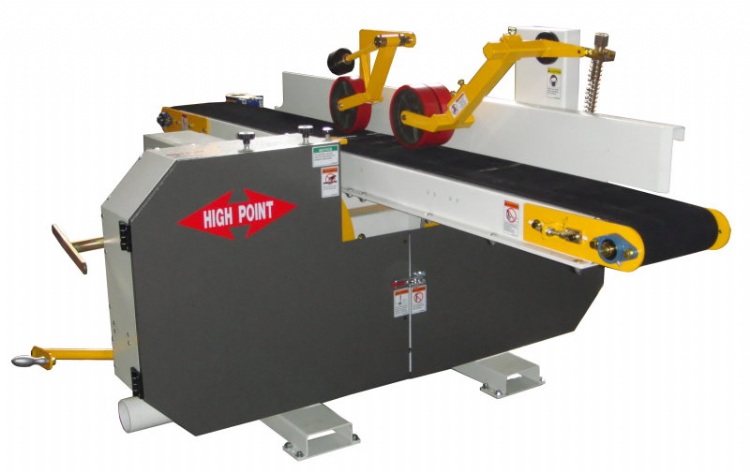

Model: Single Head Horizontal Band Resaw (HP-12)
Category: Woodworking Machinery Industry / Sawmill Machinery / Rip Saw
Characteristics
Features:
• Single saw head configuration.
• Manual saw wheel elevation.
• Variable feed speed by hydraulic motor drive.
• Manual blade tension adjustment by a handle.
Specifications
|
MODEL |
HP-12 |
|
Max workpiece size (W x H) |
300 x 300 mm (12"x12") |
|
Distance from blade to conveyor table |
3-125 mm |
|
Conveyor belt size |
285 x 5480 mm (11-1/5"x215 3/4") |
|
Saw wheel diameter |
Ø28" x 1"(W) |
|
Feed speed |
5 to 25 M/min |
|
Saw blade size (L x W x T) |
4265 x 27x 0.90mm (168" x 1") |
|
Saw wheel motor |
20 HP |
|
Hydraulic system motor |
2 HP |
|
Gear box motor |
- |
|
Dust hood diameter |
Ø 4" x 3 |
|
Net weight |
1000 kgs |
|
Packing Frame |
2180 x 1140 x 1140 mm |
|
dimensions Conveyor |
2870 x 640 x 600 mm |
