BAND RESAWS - Multiple

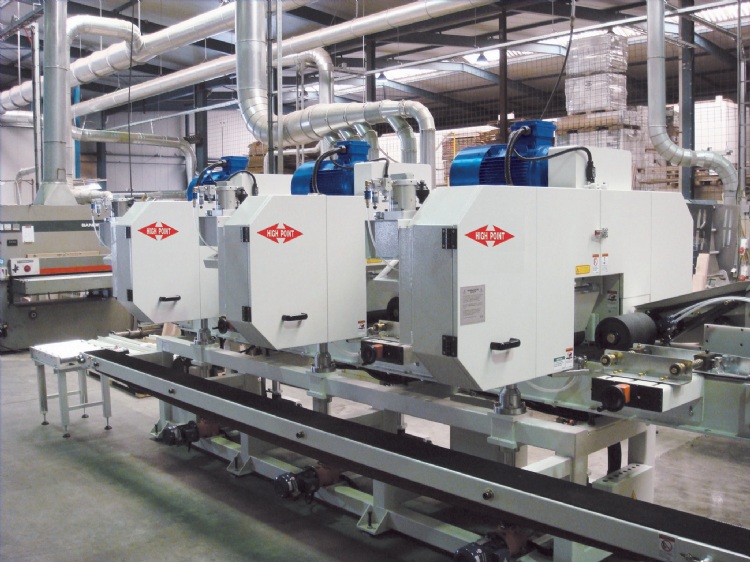

Model: THREE HEAD HORIZONTAL BAND RESAW-- HP-400-3
Category: Woodworking Machinery Industry / Sawmill Machinery / Gang Rip Saw
Characteristics
Features:
• Equipped with return conveyor.
• Variable blade speed is controlled by frequency inverter.
• Motor powered set works for accurate saw wheel elevation.
• Side pressure plate ensures smooth and accurate feed.
• Blade tension is controlled by air/hydraulic combination with automatic tension compensation.
• Digital position controller permits accurate saw wheel height positioning.
• Blade lubrication is by spray mist system.
• Variable feed speed is driven by hydraulic motor.
• Front pressure roller and rear pressure wheels are air-cylinder loaded.
Specifications
MODEL |
HP-400-3 |
Max workpiece size (W x H) |
300 x 250 mm (12"x 10") |
Distance from blade to conveyor belt |
4-250 mm |
Conveyor belt size |
285 x 9330 mm (11-1/5"x357-1/4”) |
Saw wheel diameter |
Ø 28" x 1" / Ø 28" x 2"(W) |
Feed speed |
4-25 M/min |
Saw blade size (L x W x T) |
4570 x 27 x 0.9 mm (180" x 1") / 4570 x 41 x 1.27 mm (180" x 1-1/2" ) (180’’ x 2’’ x 1.6mm x 16T) |
Saw wheel motor |
30 HP x 3 |
Gear box motor |
1/4 HP x 3 |
Dust hood diameter |
Ø 4" x 6 |
Net weight |
5100 kg |
Packing dimensions |
4800 x 2230 x 2050 mm (189" x 88" x 81") |
