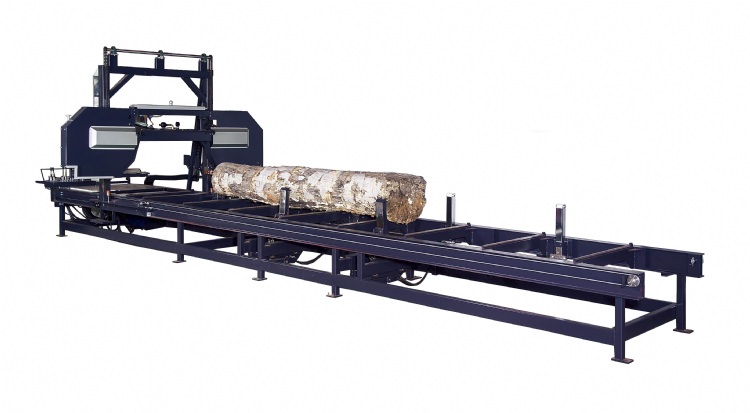

HORIZONTAL BAND SAWMILL
Model: HP-42D
Category: Woodworking Machinery Industry / Sawmill Equipment / Band Sawing Machines (Wheel Dia. 28"-below 42")
Characteristics
Productivity, accuracy, safety and easy to operate, no need log cutting skill worker.
Cutting capacity:
• Log width: 1100mm
• Log length: 7200mm
• Log bed length: 9000mm
• Min. cutting thickness: 10mm
• Min. cutting length: 2000mm
• Max. cutting log diameter: 1100mm
• Saw blade elevation distance: 25~950mm
• The final / bottom piece of board thickness: 25mm
• Shortest length of working piece: 1300mm
• Main motor drive: 40HP
• Hydraulic system: 7-1/2HP
• Horizontal feed is driven by hydraulic motor.
• Feed speed: 0-30M/min. (OMP-80)
• Band saw wheel: 42” diameter x 4” width
• Band saw blade size: 4” x 26 feet long
• With 2 sets x LOG TURNERS
• With 1 set x LOG CLAMP
• With 1 set x LOG LIFTER
• With 5 sets x LOG POSTS
• With Digital Readout for cutting sizes
• Central control panel
• Auto. lifting mechanism by electrical motor to elevate saw blade up and down
• Horizontal feed is driven by hydraulic motor
• Vertical feed is driven by gear box and liner bearing
