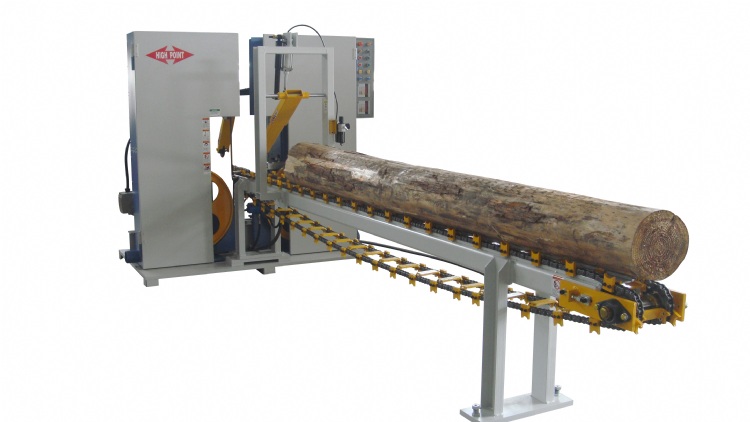

TWO HEAD VERTICAL BAND SAWMILL
Model: HP-88
Category: Woodworking Machinery Industry / Sawmill Equipment / Band Sawing Machines (Wheel Dia. 28"-below 42")
Characteristics
Cutting capacity:
• Function: Two blades are movable (one cut comes out 4 pcs.),
or one blade for center cut (comes out 2 pcs.)
• with Digital Readout
• Working capacity: log diameter x length 400mm x 1M up to 6M
• Max. log diameter: 400mm
• Min. cutting size: 75mm
• Band saw wheel : diameter 28" x 2"
• Band saw blade size: 168" x 2" (54mm)
• Log infeed chain conveyor length: 4M
• Log outfeed chain conveyor length: 4.5M
• Band saw wheels: 28" x 2"
• Saw wheel Motor: 20HP x 2 sets
• Feed speed: 5M - 20M/min.
• Hydraulic pump motor for feeding system: 3HP x 1 set
• With mist coolant system
• Dust hood: 4" x 2
• TOTAL AMP of machine: 130AMP
