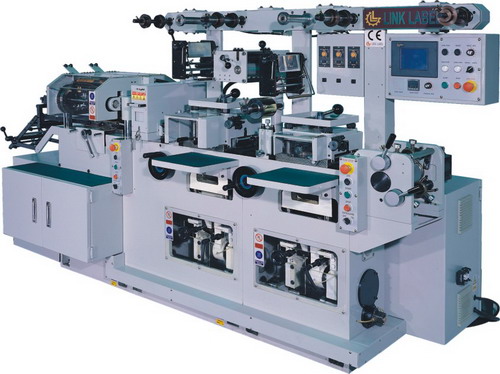

Auto Flat-bed LABEL PRINTING MACHINE
Model: PUVHLNCT-170
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Label Printing Machines
Characteristics
Machine easy to operate.
Maintenance is simple.
Excellence and precise printing quality.
Second pass printing is Exquisite.
Computer control.
Auto Oil supply system.
Less machine parts consume.
Stable used for long time operate.
Machine can print with UV type ink and normal type ink.
PLUVNCT-170 is design for the small label used. Its printing speed is 12000/hr, during the fast speed condition yet; accurate and fairly steadiness small and exquisite machine body suit a variety of factory.
PLNCT-170 could select moveable UV dryer make the machine can exchange to print two different type of printing ink to promote the used scope of the machine.
The second pass unit let the label colour even more rich with all other function makes it is a lot more convenient and its utility.
Specifications
Printing Style
Flat bed printing
Printing Plate Resin letterpress plate /Zinc /copper
Printing Color Amount 4colors
Max printing Area 2 colour 150mm*140mm
3 colour 150mm*72mm
Printing Area 150mm x 240mm
Max. Feeding Length: 170mm.
Max pulling paper length:240mm.
Printing Speed:12,000/hr.
Max die-cut size:170mm*140mm.
Max hot-stamp size :170mm*72mm (3 colour).
Max reel Paper Diameter: 500mm.
Max lamination Diameter :200mm.
Standard Equipments : 1. Tools of the machine 1Set 2. Unwinder 3. Lamination unit 4. Second pass unit 5. D= Flat-bed Die-cut unit 6. NCT= NCT control ( Computer program system control by HMI ( Human Machine Interface )) 7. P = Printing unit ( include 2 colors & 3 colors ink sets )
Optional stations on machine table : 1. D=computer sprocket punching unit 2. H=Hot foil stamping unit ( 3 different style : 1. HS station before printing station , 2. HS station after printing station , 3. Changable HS station on printing station ) 3. UV= UV curing station
Optional equipments :
1. RV-270 Vertical Rewinder 2. RH-300 Horizontal Rewinder 3. S-270 Sheeter 4. AS-320 Auto Slitter 5. Movable UV dryer machine 6. Hot stamping mold tool ( use on Die-cut station ) 7. 1 color ink set 8. 4 color ink set
