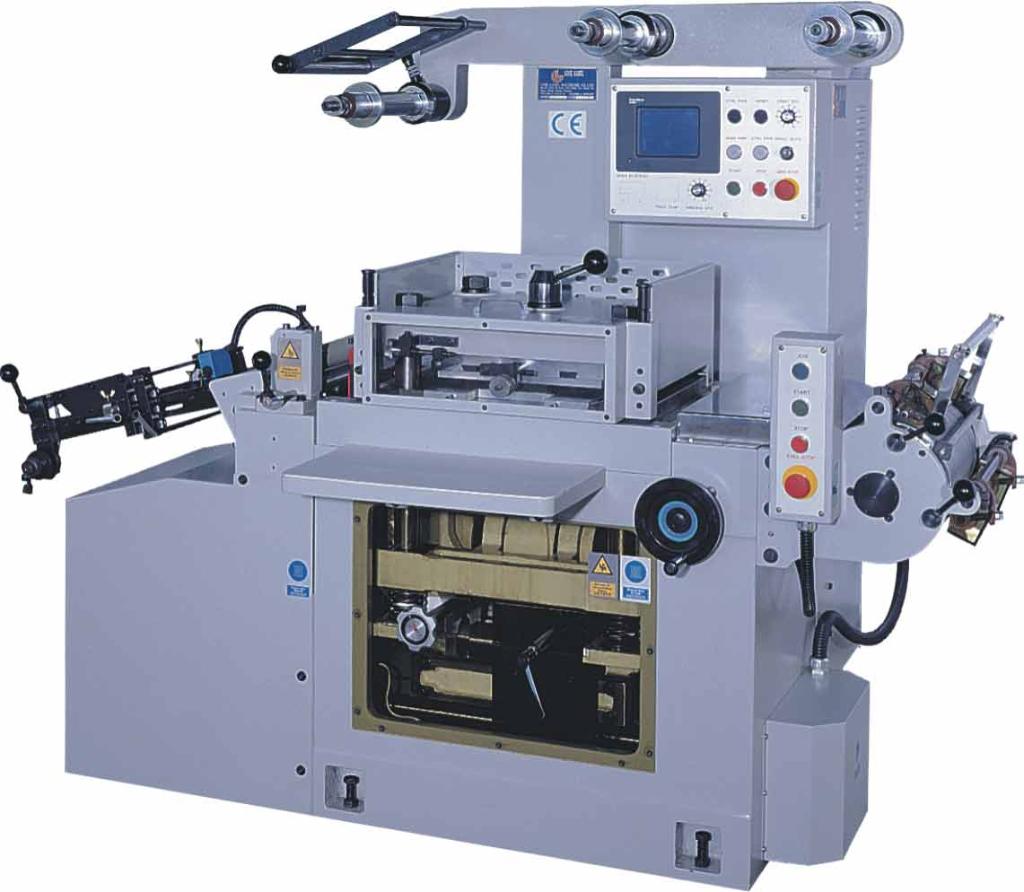

Single Flat-bed station specialize machine
Model: L-300
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Other Printing Machines
Characteristics
L-300 can coherent with LLR-300 after printing the product follow up right through to process die-cutting, lamination and to collate the waste material.
L-300 can finish process the product independently.
L-300 can process the electron product and doing duplication lamination.
Has computer hold puncher could choose.
***The basic units also : Lamination unit , Second Pass unit , Unwinder
***Applicable with LLR-300 Full rotary/ Intermittent printing machine connected both
in-line or out-line
***Or working independently connected with RV-270 Vertical Rewinder or RH-300 Horizontal Rewinder or S-300 Sheeter
Specifications
Machine weight : around 2000 kg
Machine function : Feeding paper – Lamination – Die-cut
Machine construction : individual machine body
Spec.
ITEM Specification
Lamination ways: Laminate with OPP film, mantle stick on.
Lamination material: OPP film, adhesiveness material.
OPP film max. width: 300mm.
OPP film max. diameter: 500mm.
OPP film inner diameter of paper tube: 75mm-76mm (3In).
Die-cut ways: by Flat-bed pressing.
Max. Die-cut area: 290mm x 300mm.
Thickness of Die-cut mold: 9mm~12mm
Pressure distance by height: 5mm.
