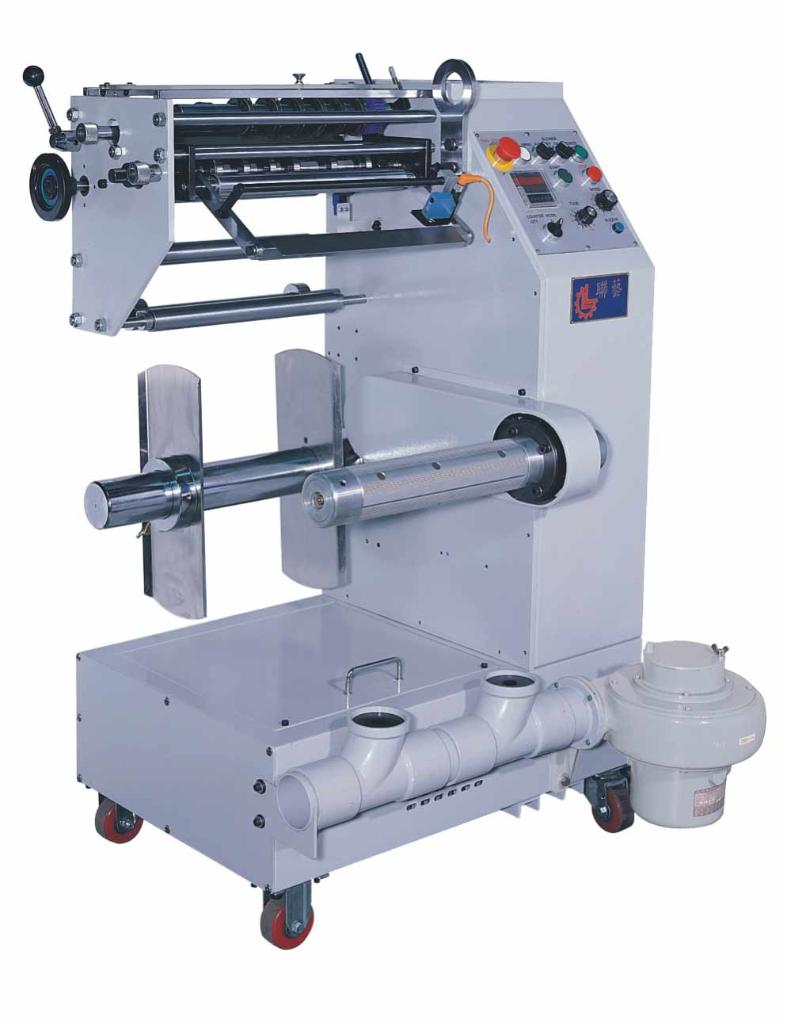

AUTO SLITTER AND REWINDER
***Paper slitting with smooth speed and adjustable left and right side while slitting.
***Speed is adjustable by PC board control.
*** Equip on length and sheet amount sensors.
***Machine will stop automatically when set amount is achieved.
***The combinatin of rotary knives both on bottom and top to reach a excellent slitting result and save the cost and time.
***Adjustable tension control to fit for slitting material elasticity.
***Easy operation when feeding paper and slitting.( equip the rulers on feeding & rewind shaft )
***Air sucker is acconpaied with machine to take away the waste edge paper.
SLITTING WIDTH MIN.9MM. MAX.320MM
SPEED RANGE 75M/Min.
INNER DIAMETER OF BRANCH PIPE 75m/m
MAXIMUM WIDTH & OUTER DIAMETER 500m/m
UPPER DEGREE,LOWER 6
CONSUMPTION POWER 220v
