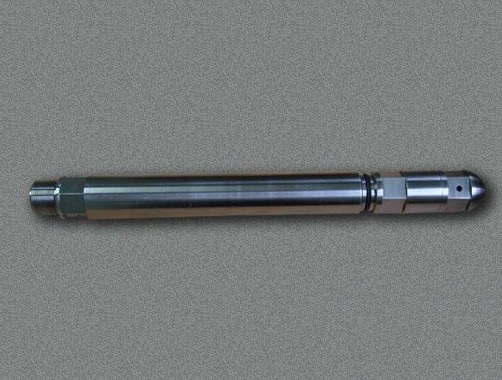

Electronic Pressure Gauge
Model: JDY-36
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
Low power consumption
Large data storage
Compact design
USB Interface
Specifications
Electronic Pressure Gauge
Electronic pressure gauge, is used for oilfield logging, mainly for oil, gas, water well flow static pressure and recovery test. It can record the data such as downhole pressure, temperature, flow, depth and magnetic locating.
Feature:
- Low power consumption, max working current less than 3mA when sampling. While less than 0.1mA in hibernating condition.
- Large data storage
- Compact to take, with min. length 130mm
- Using USB to connect computer for data reading.
Technical Parameter:
|
Model |
JDY-C |
JDY-D |
JDY-X |
JDY-S |
JDY-Y |
|
Type |
Memory |
direct-reading |
Longterm |
4-parameter effect |
sample sealed |
|
Pressure range |
0-100MPa |
0-100MPa |
0-100MPa |
0-100MPa |
0-100MPa |
|
Test accuracy |
±0.1% F.S |
±0.1% F.S |
±0.1% F.S |
±0.1% F.S |
±0.1% F.S |
|
|
±0.05% F·S |
±0.05% F·S |
±0.05% F·S |
±0.05% F·S |
±0.05% F·S |
|
Temperature range |
0-150 ℃ |
0-150 ℃ |
0-150 ℃ |
0-150 ℃ |
0-150 ℃ |
|
Test accuracy |
±1℃ |
±1℃ |
±1℃ |
±1℃ |
±1℃ |
|
Size |
Φ21mm |
Φ21mm |
Φ90mm |
Φ38mm |
Φ20mm |
