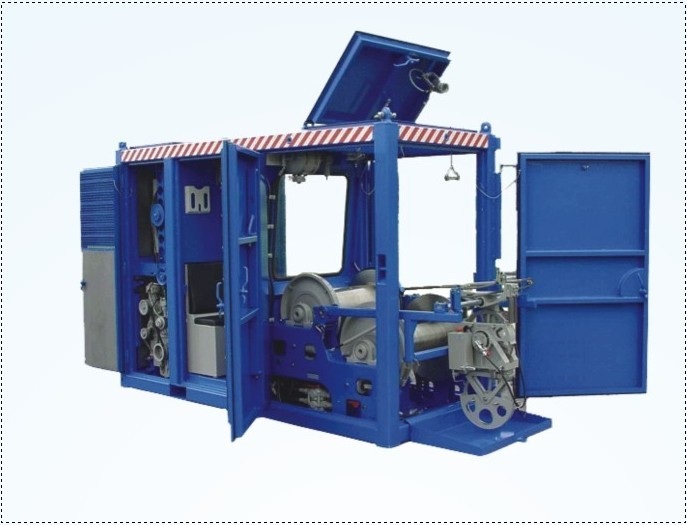

Containerized Wireline Unit
Model: TBDQZ2CJ-50
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
1.Designed for general logging operations,or fishing
2.Self-contained power system
3.Small footprint, light heavy
4.Container type design, ease of transportation and operation
Specifications
The container comprises power pack, control panel and winch system.
Winch System
Winch drum(wire)
wire capacity of 5000m
Cable winch drum (700 mm (OD) / 260 mm (core) / 700 mm (wide) weight 395 kg
7/32” wire capacity of 8,351 m (27,400 ft)
Winch drum is chain driven
Fail safe spring return brake
Planetary gearbox ratio 5,8:1 / 7:1
Wire sizes changable
Depth & Tension System
Measuring head with integral load cell
Combined gauge with weight indicator and depth counter
Power Pack
Engine: water-cooled four cylinder Caterpillar diesel engine
Starter system: air / hydraulic
Electrical rig supply: 115 VAC 60 Hz / 230 VAC 50 Hz
Control voltage: 24 VDC (by internal converter)
Diesel reservoir: 120 Litres, 31.7 US Gallon
Control Panel
Hydraulic main pressure gauge
RPM gauge
Line tension valve
Throttle control
Winch direction and speed control valve
Air pressure
Brake control
Emergency stop button
