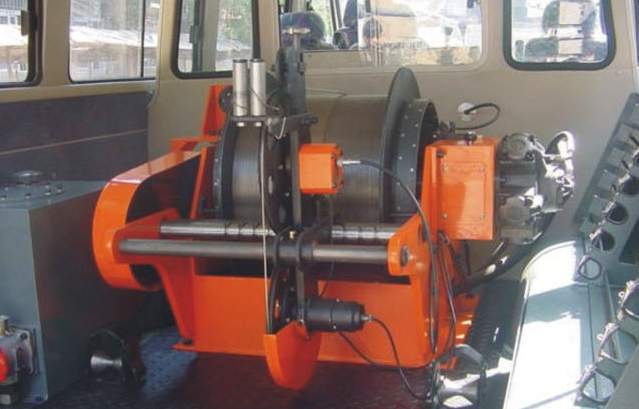

Hydraulic logging unit
Model: YJC-G
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Pneumatic and Hydraulic Machinery
Characteristics
Used for pressure testing, wax cleaning and water well fishing and salvaging.
Specifications
There are two types of this series, stationary winch(Model:YJC-G) and removable winch(Model:YJC-H).
Stationary winch, is that wireline roller couldn’t be removable; Removable winch, the opposite.
Removable winch suits pressure regaining well test.
Parameter(Model:YJC-G):
Logging depth:6000-7500M
Max. Hydraulic pressure:over 20Mpa
Rated hydraulic pressure:over 16Mpa
Lifting force:over 7kn or 15kn
Lifting speed:7m/s
Rotation speed of drum:0-320r/min
Wireline diameter:2.2, 2.4 or 2.6
Twining method:Automatically
Note: Information about YJC-H type, pls kindly contact us to learn more.
