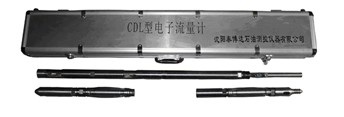

Ultrasonic Flow Meter
Model: CDL
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
This flowmeter is specially applied to test water injection rate in water injected well, as well as polymer well.
Specifications
Based on advanced ultrosound principle, the flowmeter tests water flux by time-difference method. It has reasonable mechnical design, easy to install and operate, with high accuracy and stable reliability.
- l Technical parameter
Flow rate |
Pressure range |
Temperature range |
Flow accuracy |
Pressure accuracy |
Temperature accuracy |
O.D device |
2-100m3/d |
0-35Mpa |
85J/125J |
2% |
0.5% |
±1J |
Φ36×1620mm |
2-200m3/d |
0-35Mpa |
85J/125J |
2% |
0.5% |
±1J |
Φ36×1620mm |
2-300m3/d |
0-35Mpa |
85J/125J |
2% |
0.5% |
±1J |
Φ36×1620mm |
2-500m3/d |
0-60Mpa |
85J/125J |
2% |
0.5% |
±1J |
Φ36×1620mm |
2-700m3/d |
0-60Mpa |
85J/125J |
2% |
0.5% |
±1J |
Φ36×1620mm |
