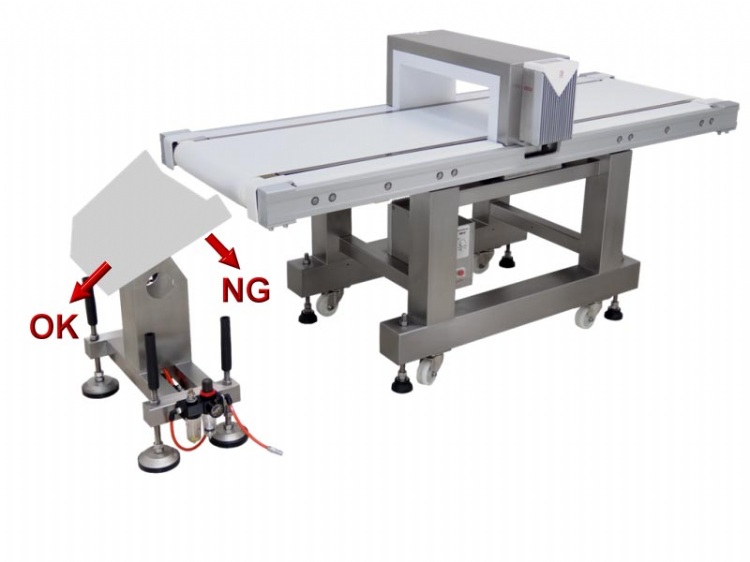

Flap forward reject device
Model: MD4517- LS-PU
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Others
Characteristics
COMPUNIC Metal Detector is approved by HACCP Standard can install in food processing & pharmacy to identify and prevent hazards from metal contamination. COMPUNIC Metal Detector can inspect and reject the suspicious product that may be contaminated with foreign metal objects.
Metal Detector MD1206H with Slide-down channel & Electric Reject device, it can apply in pharmaceutical industry for inspecting & rejecting the suspicious product that may be contaminated with foreign metal objects.
COMPUNIC Metal Detector is effectively for checking metal contaminating and achieves the essence of HACCP.
Specifications
Metal Detector
Model No. MD4517
-ApertureGW45 cm x H17cm
-Available aperture heightG15cm
-Highest sensitivityG1.0mmψ(Fe), 2.0mmψ(316SUS )
(The usable sensitivity may be adjusted lower during testing the products.)
-Alarming signals: red LED and siren sound.
-Reject interfaceGDry contact (Relay) for stopping the conveyor.
-Power supplyG220V, 60HZ, Single phase
-Plug typeGCEE7,2P+E
Conveyor for Metal Detector
Model No. LS-PU-45
-Base frameG304 Stainless Steel
-ConveyorGthin solid plastic belt
-DimensionsGL180x W68 Platform HeightG71(cm3)
-Output LengthG78.5cm, Input LengthG78.5cm
-Belt WidthG39.2cm
-SpeedGAdjustable 10~19M/minute
-Load capacityGmax. 10kgs
-Belt directionGright to left
-Height adjustable supporting pads
