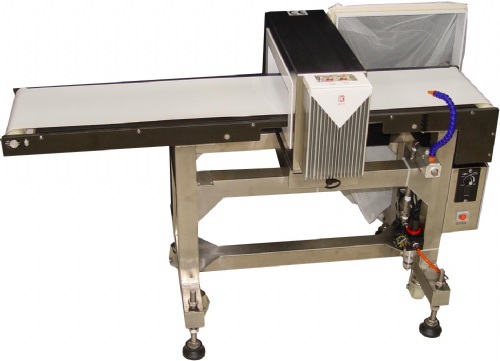

Metal Detector w/ Air blast reject device & Collecting net
Model: MD3214, BCP-120
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Food / Pharmaceutics Packaging Related Equipments
Characteristics
COMPUNIC Metal Detector is approved by HACCP Standard can install in food processing to identify and prevent hazards from metal contamination. COMPUNIC Metal Detector can inspect and reject the suspicious product that may be contaminated with foreign metal objects.
Metal Detector MD3214 BCP-120 with Air blast reject device & Collecting net, it can apply food industry for inspecting & rejecting the suspicious product that may be contaminated with foreign metal objects.
COMPUNIC Metal Detector is effectively for checking metal contaminating and achieves the essence of HACCP.
Specifications
Metal Detector
Model No. MD3214
-ApertureGW32 cm x H14cm
-Available aperture heightG12cm
-Highest sensitivityG0.8mmr(Fe), 1.8mmr(304SUS )
(The usable sensitivity may be adjusted lower while the products are tested.)
-Alarming signals: red LED and siren sound.
-Reject interfaceGDry contact (Relay) for stopping the conveyor.
-Power supplyG220V, 60HZ, Single phase
-Plug typeGCEE7, 2P+E
Conveyor for Metal Detector
Model No. BCP-120
-Base frameG304 Stainless Steel
-ConveyorGthin solid plastic belt
-DimensionsGL120 cm x W28.5 cm Platform HeightG79(cm3)
-Output LengthG35cm, Input LengthG65cm
-Belt WidthG22.6cm
-SpeedGAdjustable 10~34M/minute
-Load capacityG Max. 3kgs
-Belt directionG Left to right
-Height adjustable supporting pads
-Accesories G Air blast reject device & Collecting net
