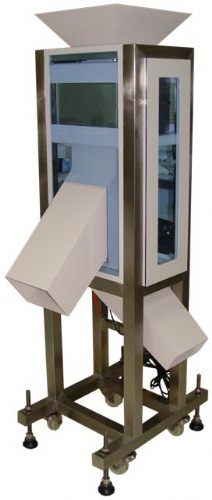

Metal Detector with Gravity & Sealed Detection Channel
Model: MD1212
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Food / Pharmaceutics Packaging Related Equipments
Characteristics
COMPUNIC Metal Detector is approved by HACCP Standard, it can install in food processing & pharmacy to identify and prevent hazards from metal contamination. COMPUNIC Metal Detector can inspect and reject the suspicious product that may be contaminated with foreign metal objects.
Metal Detector MD1212 with Gravity Sealed detection channel can apply in pharmaceutical & food industries for inspecting & rejecting the suspicious product that may be contaminated with foreign metal objects.
COMPUNIC Metal Detector is effectively for checking metal contaminating and achieves the essence of HACCP.
Specifications
METAL DETECTOR
with Gravity & Sealed Detection Channel
MODEL NO: MD1212
-ApertureGW12 cm x H12 cm
-Available aperture with feeding funnel :Width:11 cm, Height11 cm
-Highest sensitivityG0.7mmr(Fe), 1.5mmr(304SUS )
(The usable sensitivity may be adjusted lower during testing the products.)
-Alarming signals: red LED and siren sound.
-Reject interfaceGDry contact (Relay) for stopping the conveyor.
-Power supplyG220V, 60HZ, Single phase
-Plug typeGCEE7,2P+E
Spec. of base frame, Gravity & Sealed Detection Channel
-Base frameG304 Stainless Steel
-DimensionsGL66 cmW47.6 cmHeight:155 cm
-Input HeightG155 cm
-Output HeightG54 cm
-Direction : Gravity Channel
-Rejection deviceGDiverting rejection
Accessory: Feeding Funnel
