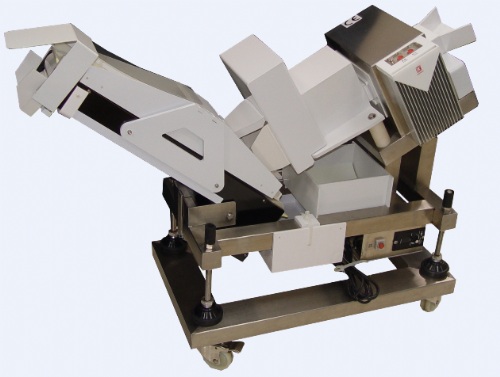

Metal Detector Slide-down channel & Rising up conveyor
Model: MD1206H
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Food / Pharmaceutics Packaging Related Equipments
Characteristics
COMPUNIC Metal Detector is approved by HACCP Standard . It can install in food processing to identify and prevent hazards from metal contamination. COMPUNIC Metal Detector can inspect and reject the suspicious product that may be contaminated with foreign metal objects.
Metal Detector MD1206H Slide-down channel & Rising up conveyor. It can apply in pharmaceutical industry for inspecting & rejecting the suspicious product that may be contaminated with foreign metal objects.
COMPUNIC Metal Detector is effectively for checking metal contaminating and achieves the essence of HACCP.
Specifications
METAL DETECTOR MD1206H
with Slide-down channel & Rising up conveyor
MODEL NO: MD1206H
-Aperture:W12 cm x H06 cm
-Available aperture with feeding funnel :Width:10cm, Height:4.5cm
-Highest sensitivity : 0.25mmψ(Fe),0.5mmψ(316SUS),0.3mmψ(CU),
(The usable sensitivity may be adjusted lower during testing the products.)
-Alarming signals: red LED and siren sound.
-Reject interface:Dry contact (Relay) for stopping the conveyor.
-Power supply:220V, 60HZ, Single phase
-Plug type:CEE7,2P+E
Spec. of base frame, Slide-down channel + Flap forward rejection & Rising up conveyor
-Base frame:304 Stainless Steel
-Dimensions:L 72 cm * W 47 cm
-Machine Dimension : L 120 cm * W 47 cm
-Input (H):53cm, Output (H):Adjustable 55~65cm Conveyor (W): 10cm
-Direction : Left to Right (See attached picture)
-Speed : Adjustable 8 ~ 38 M/minute
-Load Capacity : Max 1 kgs
-Rejection device:Diverting rejection
ACCESSORIES: Mini-Carrier (770*450*160 mm)
