RxxAN Series Thermoplastic Elastomer (TPE/ TPR) - Transparent

Enlarge

RxxAN Series Thermoplastic Elastomer (TPE/ TPR) - Transparent

Model: RxxAN Series

Category: Plastic and Rubber Industry / Other Machinery / Plastic Raw Materials

Online Inquiry

Characteristics

A、 FDA、RoHS、REACH、PAHs approval.
B、 Medical grade.
C、 Low specific gravity.
D、 High transparency.
E、 Odorless and Non- toxic.
F、 Excellent adhesive with glue.

Specifications

Test Item	Test Method	Unit	Specification
Test Item	Test Method	Unit	R10AN	R25AN	R35AN	R45AN	R55AN	R60AN	R88AN
Specific Gravity	ASTM D792	G/ cm³	0.9±0.03	0.9±0.03	0.9±0.03	0.9±0.03	0.9±0.03	0.9±0.03	0.9±0.03
Hardness	ASTM D2240	Shore A	10±3	25±3	35±3	45±3	55±3	60±3	88±3
Tensile Strength	ASTM D412	Kg/cm^A2	11	10	10	31	33	60	70
Elogation	ASTM D412	%	850	630	560	560	730	800	700
Tear Strength	ASTM D624 Die C	Kg/cm^A2	2.5	3	3	5	15	15	15
Heat Aging Resistance	ASTM D573 136℃ 7D	% TB/EB	73/75	73/75	73/75	65/67	67/70	73/75	73/75
Yerzley Resilience	CNS K1392	%	78	86	86	75	80	80	80
Heat Resistance	W-O-M 63℃ 500hrs	% TB/EB	80/85	80/85	80/85	65/67	65/67	80/85	80/85
Brittle Temperature	ASTM D746	℃	-40	-40	-40	-40	-40	-40	-40
This information is based on our testing and is intended to describe the product properties only. It should not therefore be construed as guaranteeing any specific property of the product.

Hardness: 15A-60D
Appearance:

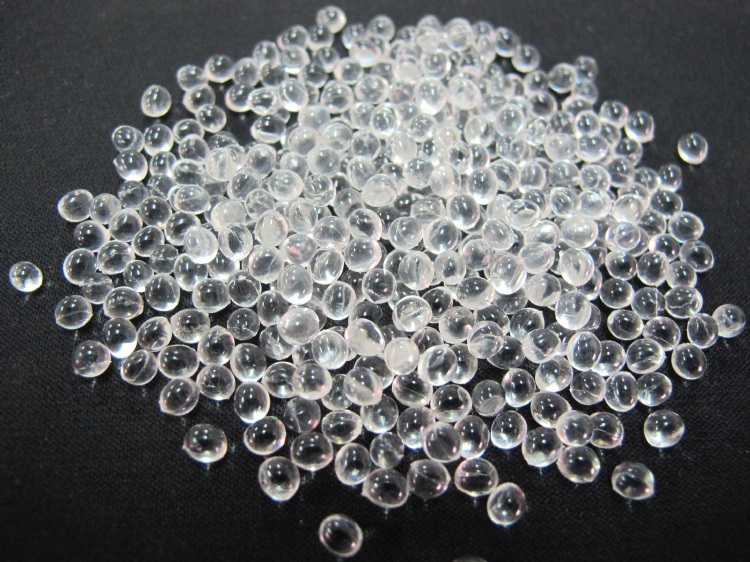

Form: Granules
Color: Transparent/ Customized.
Applications:
All kinds of grip, stopper, shoe midsole, dust proof boot.
Processing Method: Injection
Storage Condition:
At room temperature, avoid direct sunlight and away from sources of fire
Packaging: 25 kgs/ bag, craft bag + PE inner bag.
Delivery: 7 to 10 working days upon payment.
