HPxxAN Series Thermoplastic Elastomer (TPE/ TPR) - Translucent Grade

Enlarge

HPxxAN Series Thermoplastic Elastomer (TPE/ TPR) - Translucent Grade

Model: HPxxAN Series

Category: Plastic and Rubber Industry / Other Machinery / Plastic Raw Materials

Online Inquiry

Characteristics

A、 FDA, RoHS, REACH, PAHs approval.
B、 Medical grade.
C、 Low specific gravity.
D、 High tensile strength.
E、 Excellent elongation.
F、 Odorless and Non- toxic
G、 Its scrap can 100% revitalized into reusable materials.

Specifications

Test Item	Test Method	Unit	Specification
Test Item	Test Method	Unit	HP10AN	HP20AN	HP35AN	HP50AN	HP60AN
Specific Gravity	ASTM D792	G/ cm³	0.9±0.03	0.9±0.03	0.9±0.03	0.9±0.03	0.9±0.03
Hardness	ASTM D2240	Shore A	10±3	20±3	35±3	50±3	65±3
Tensile Strength	ASTM D412	Kg/cm^A2	45	40	60	62	62
Elogation	ASTM D412	%	900	850	850	800	800
Tear Strength	ASTM D624 Die C	Kg/cm^A2	10	10	11	12	12
Heat Aging Resistance	ASTM D573 136℃ 7D	% TB/EB	93/97	95/98	95/98	95/98	95/98
Yerzley Resilience	CNS K1392	%	83	85	85	85	85
Heat Resistance	W-O-M 63℃ 500hrs	% TB/EB	79/83	80/85	80/85	80/85	80/85
Brittle Temperature	ASTM D746	℃	-60	-60	-60	-60	-60
This information is based on our testing and is intended to describe the product properties only. It should not therefore be construed as guaranteeing any specific property of the product.

Hardness: 10A- 58D

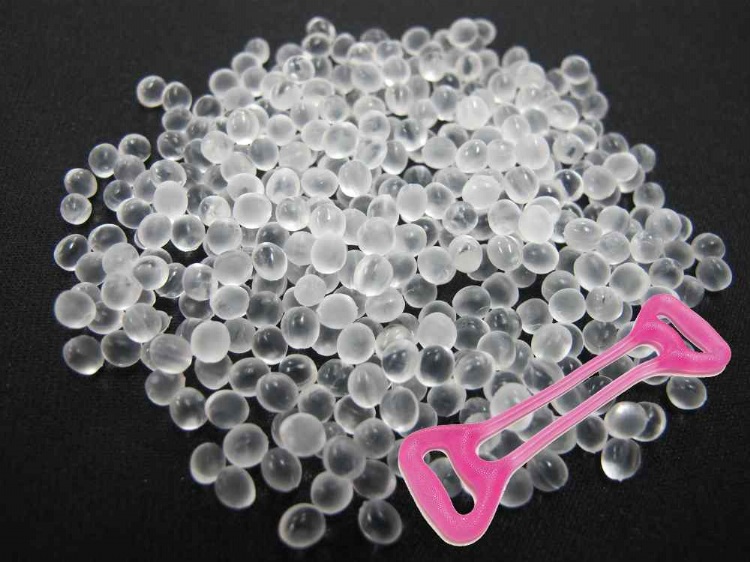

Appearance:
- Form: Granules
- Color: Translucent/ Customized.
Applications: Sporting Goods, chest expander… etc.
Processing Method: Injection and Extrusion
Storage Condition:
At room temperature, avoid direct sunlight and away from sources of fire.
Packaging:
- Normal packing: 25 KGS/ Kraft bag.
- Pallets packing: 25 KGS/ Kraft bag, 40 Kraft bags/ Pallet.
Delivery: 7 to 10 working days upon payment.
