HxxAN Series Thermoplastic Elastomer (TPE/ TPR) - Transparent

Enlarge

HxxAN Series Thermoplastic Elastomer (TPE/ TPR) - Transparent

Model: HxxAN Series

Category: Plastic and Rubber Industry / Other Machinery / Plastic Raw Materials

Online Inquiry

Characteristics

A、 FDA, RoHS, REACH, PAHs approval.
B、 Medical grade.
C、 Low specific gravity.
D、 High transparency.
E、 Good elasticity.
F、 Excellent resilience.
G、 Anti-slip.
H、 Excellent weather resistance (UV and ozone).
I、 Odorless and Non- toxic.
J、 Its scrap can 100% revitalized into reusable materials.

Specifications

Test Item	Test Method	Unit	Specification
Test Item	Test Method	Unit	H25AN	H35AN	H45AN	H50AN	H65AN	H70AN	H75AN	H85AN
Specific Gravity	ASTM D792	G/ cm³	0.9±0.03	0.9±0.03	0.9±0.03	0.9±0.03	0.9±0.03	0.9±0.03	0.9±0.03	0.9±0.03
Hardness	ASTM D2240	Shore A	25±3	35±3	45±3	50±3	65±3	70±3	75±3	85±3
Tensile Strength	ASTM D412	Kg/cm^A2	32	31	49	49	48	54	55	55
Elogation	ASTM D412	%	525	550	530	530	525	525	500	486
Tear Strength	ASTM D624 Die C	Kg/cm^A2	21	21	21	21	14	14	15	16
Heat Aging Resistance	ASTM D573 136℃ 7D	% TB/EB	93/98	95/98	85/85	85/85	85/85	85/85	85/85	85/85
Yerzley Resilience	CNS K1392	%	85	85	63	63	65	65	65	65
Heat Resistance	W-O-M 63℃ 500hrs	% TB/EB	80/85	80/85	78/85	78/85	78/85	78/85	78/85	78/85
Brittle Temperature	ASTM D746	℃	-60	-60	-58	-58	-58	-58	-58	-58
This information is based on our testing and is intended to describe the product properties only. It should not therefore be construed as guaranteeing any specific property of the product.

Hardness: 35A-65A
Appearance:

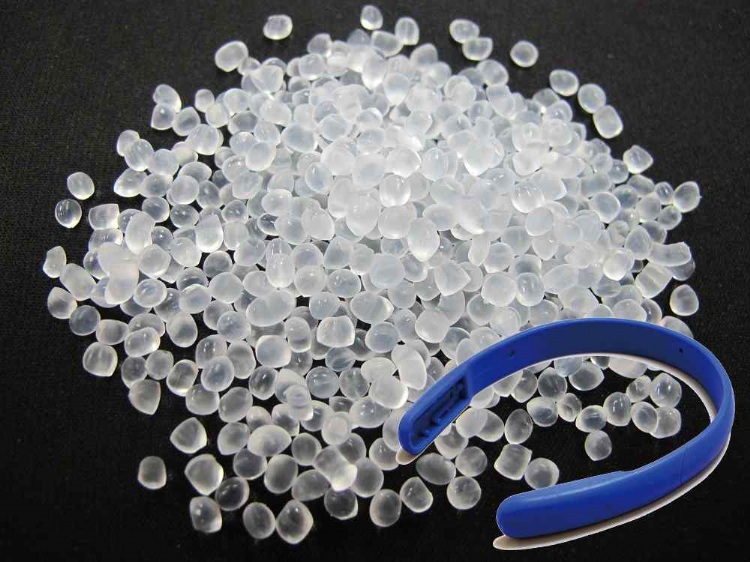

- Form: Granules
- Color: Transparent/ Customized.
Application:
All kinds of grip, glasses nose pad, goggles lens, teether… etc.
Processing Method: Injection
Storage Condition:
At room temperature, avoid direct sunlight and away from sources of fire.
Packaging:
Normal packing: 25 KGS/ Kraft bag.
Pallets packing: 25 KGS/ Kraft bag, 40 Kraft bags/ Pallet.
Delivery: 7 to 10 working days upon payment.
