xxAN Series Thermoplastic Elastomer (TPE/ TPR) - Translucent Grade
Model: xxAN Series
Category: Plastic and Rubber Industry / Other Machinery / Plastic Raw Materials
Characteristics
A. FDA, RoHS, REACH, PAHs approval.
B. Medical grade.
C. Low specific gravity.
D. Compounds for general purpose.
E. Odorless and Non- toxic.
F. Competitive price.
Specifications
| Test Item | Test Method | Unit | Specification | ||||||||
| 25AN | 30AN | 45AN | 55AN | 65AN | 75AN | 85AN | 90AN | 95AN | |||
| Specific Gravity | ASTM D792 | G/ cm3 | 0.9±0.03 | 0.9±0.03 | 0.9±0.03 | 0.9±0.03 | 0.9±0.03 | 0.9±0.03 | 0.9±0.03 | 0.9±0.03 | 0.9±0.03 |
| Hardness | ASTM D2240 | Shore A | 25±3 | 30±3 | 45±3 | 55±3 | 65±3 | 75±3 | 85±3 | 90±3 | 95±3 |
| Tensile Strength | ASTM D412 | Kg/cmA2 | 38 | 38 | 38 | 40 | 50 | 55 | 55 | 150 | 217 |
| Elogation | ASTM D412 | % | 880 | 760 | 656 | 500 | 500 | 500 | 600 | 600 | 600 |
| Tear Strength | ASTM D624 Die C |
Kg/cmA2 | 12 | 12 | 12 | 15 | 16 | 18 | 20 | 21 | 44 |
| Heat Aging Resistance | ASTM D573 136℃ 7D |
% TB/EB |
80/85 | 80/85 | 80/85 | 80/85 | 85/90 | 80/85 | 90/95 | 90/95 | 90/95 |
| Yerzley Resilience | CNS K1392 | % | 60 | 60 | 70 | 70 | 80 | 70 | 60 | 65 | 60 |
| Heat Resistance | W-O-M 63℃ 500hrs |
% TB/EB |
75/80 | 82/88 | 80/85 | 80/85 | 80/85 | 80/85 | 80/85 | 80/86 | 80/86 |
| Brittle Temperature | ASTM D746 | ℃ | -50 | -50 | -50 | -50 | -50 | -50 | -50 | -50 | -50 |
| This information is based on our testing and is intended to describe the product properties only. It should not therefore be construed as guaranteeing any specific property of the product. |
|||||||||||
- Hardness: 10A- 58D
- Appearance:

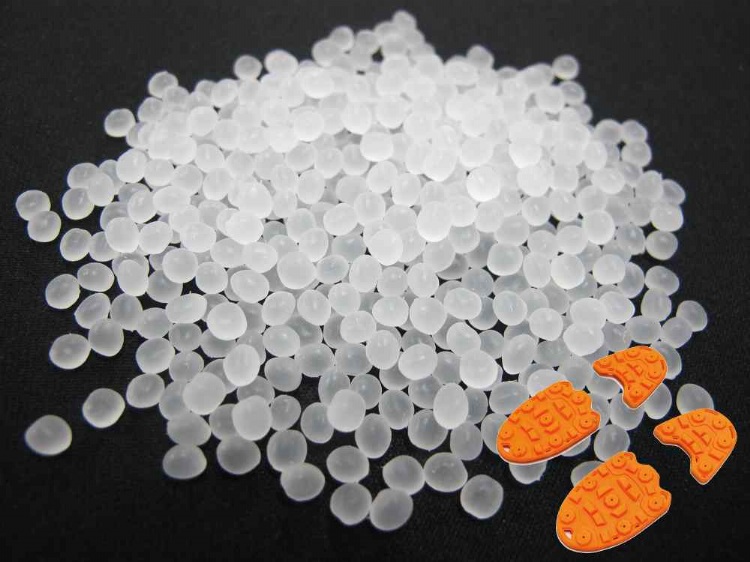

- Form: Granules
- Color: Translucent/ Customized.
- Applications:
All kinds of grip, waterproof gasket and plug, anti-slip mats, caster, goggle gasket and snorkel, bicycle pedal, skate brake, sporting goods… etc. - Processing Method: Injection
- Storage Condition:
At room temperature, avoid direct sunlight and away from sources of fire. - Packaging:
- Normal packing: 25 KGS/ Kraft bag.
- Pallets packing: 25 KGS/ Kraft bag, 40 Kraft bags/ Pallet.
- Delivery: 7 to 10 working days upon payment.
