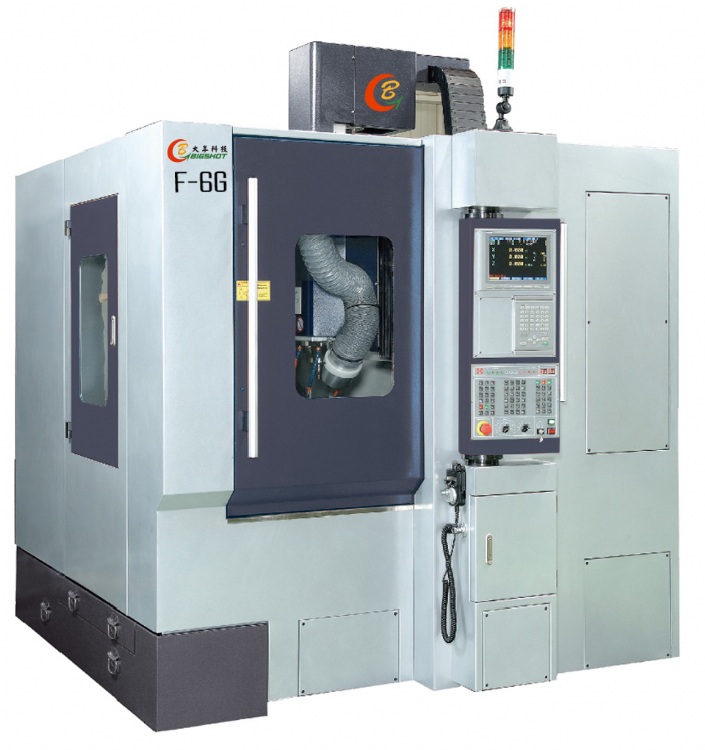

Graphite Machine Center
Model: F-6G
Category: Machine Tools / Milling Machines / CNC Vertical Milling Machines
Characteristics
Machine Features
Fully enclosed splash guard is a systematic attempt to strengthen for protect operator and environmental measures.
Extensible cover for a special purpose graphite cutting, the space utilized completely, the protecting cover exterior uses the peculiar part design , effective against chips and graphite dust into ballscrew or linear guideways, expansion smoothness to achieve the optimization.
Graphite Dust Collection device is strong suction suitable for cutting graphite workpiece and recycle graphite to protect operator and environmental measures.
Specifications
|
型式 |
Model |
Unit |
F-6G |
|
工作台TABLE |
|
||
|
工作台面積 |
Working surface |
mm |
600×600 |
|
T型槽 (尺寸×槽數) |
T-Slots (Size× Number) |
mm |
14×4(P=100) |
|
工作台最大負荷 |
Max. table load |
kg |
500 |
|
立柱門寬 |
Column Span |
mm |
647 |
|
行程TRAVEL |
|
||
|
左右行程(X) |
Longitudinal travel (X) |
mm |
600 |
|
前後行程(Y) |
Cross travel (Y) |
mm |
600 |
|
主軸頭上下行程(Z) |
Headstock travel (Z) |
mm |
350 |
|
主軸鼻端至 工作台面之距離 |
Distance of spindle end to table top |
mm |
150~500 |
|
主軸SPINDLE |
|
||
|
主軸端孔斜度 |
Spindle nose |
|
ISO30/HSK-40E/SK-30 |
|
主軸轉速 |
Spindle speeds |
rpm |
30000 |
|
主軸馬達 |
Spindle Motor |
rpm |
(Built-In) 6.4 |
|
進給FEED |
|
||
|
切削進給 |
Cutting feed |
mm/min |
1-12,000 |
|
快移速率 |
Rapid traverse(X,Y,Z) |
m/min |
30×30×30 |
|
自動刀具更換裝置ATC (Automatic Tool Changer) |
|
||
|
刀把型式 |
Tool holder |
|
ISO30/HSK-40E |
|
刀具儲存容量 |
Tool storage capacity |
Tools |
16T |
|
最大刀具(直徑*長度) |
Max. Tool (Dia.× Length) |
Æ×mm |
Æ40×150 |
|
最大刀具重 |
Max. Tool weight |
kg |
1.5 |
|
選刀方式 |
Tool selection |
|
鄰近雙向任意選刀 Arbitrary Direction |
|
機台尺寸Machine Size |
|
||
|
機械尺寸 |
Machine Dimension |
mm |
2270×2020×2460 |
|
變壓器 |
Transformer |
kva |
20 |
|
機械重量 |
Machine Weight |
Kg |
4500 |
|
機械毛重 |
Gross Weight |
kg |
5330 |
|
建議包裝 |
Packing Advice |
mm |
1×40’HQ(4 Sets) |
