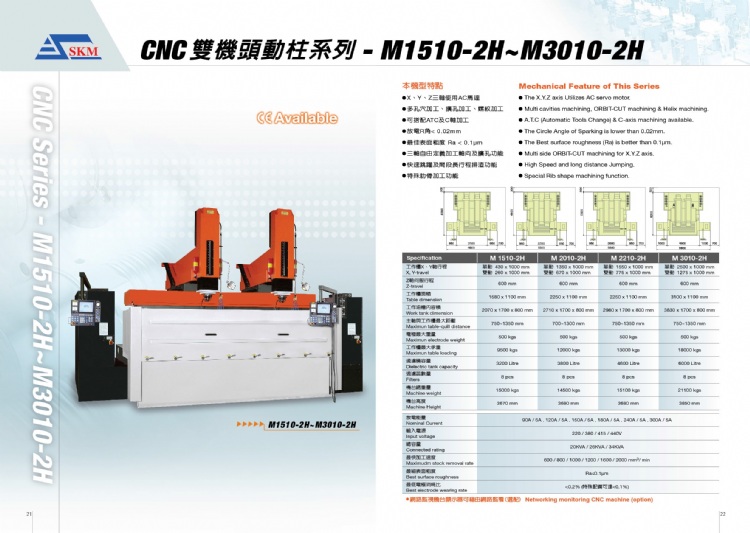

CNC Sliding Double-Column EDM Series M1510-2H~M3010-2H
Model: M1510-2H~M3010-2H
Category: Machine Tools / Electric Discharge Machines / CNC Electric Discharge Machines
Characteristics
The X. Y& Z axes utilize AC servo motors.
Multi-cavities machining, ORBIT-CUT machining & Helix machining.
A.T.C. (Automatic Tool change) & C-axis machining available.
The Circle Angle of Sparking is lower than 0.02mm.
The best surface roughness (Ra) is better than 0.1 µm.
Multi-side ORBIT-CUT machining for X, Y & Z axis
High speed and long distance jumping.
Special rib shape machining function.
Specifications
Specification
|
M 2210 - 2H
|
M 3010 - 2H
|
X, Y-Travel |
1 Head: 1600 x1000 mm
|
1 Head: 2500 x1000 mm
|
2 Head: 800 x 1000 mm
|
2 Head: 1275 x 1000 mm
|
|
Z-Travel |
600 mm
|
600 mm
|
Table Dimension |
2250 x 1100 mm
|
3100 x 1100 mm
|
Work Tank Dimension |
2820 x 1620 x 650 mm
|
3830 x 1620 x 650 mm
|
Max. Table-Quill Distance |
540~1140 mm
|
750 ~1350 mm
|
Max. Electrode Weight |
300 kgs
|
300 kgs
|
Max. Table Loading |
13000 kgs
|
18000 kgs
|
Dielectric Tank Capacity |
4600 Litre
|
6000 Litre
|
Filters |
12 pcs
|
12 pcs
|
Machine Weight |
15100 kgs
|
21100 kgs
|
Machine Height |
3680 mm
|
3850 mm
|
