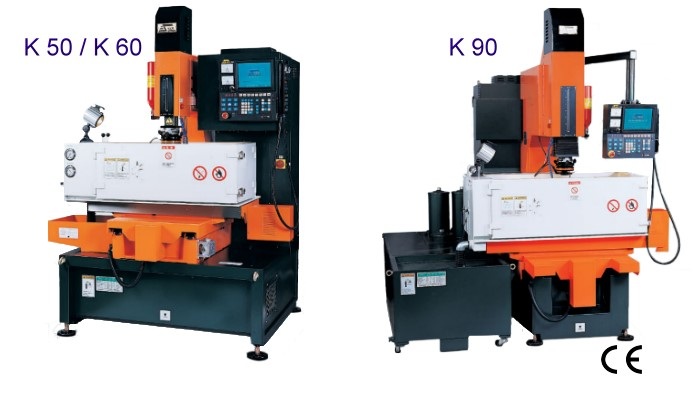

PNC (ZNC+table movement auto-positioning) EDM Series K50,K60,K90
Model: K50,K60,K90
Category: Machine Tools / Electric Discharge Machines / Programmable Control (NC) Electric Discharge Machines
Characteristics
The X. Y& Z axis utilize AC servo motor.
Auto-positioning and multi cavities machining.
Program function
The Circle Angle of Sparking is lower than 0.02mm
The best surface roughness (Ra) is better than 0.1 µm.
High speed and long distance jumping.
Special Rib shape machining function.
Specifications
Specification
|
K 50
|
K 60
|
K 90
|
X, Y-Travel |
300 x 200 mm
|
400 x 300 mm
|
500 x 400 mm
|
Z-Travel |
300 mm
|
300 mm
|
300 (290) mm
|
Table Dimension |
600 x 360 mm
|
660 x 380 mm
|
820 x 500 mm
|
Work Tank Dimension |
720 x 460 x 260 mm
|
900 x 560 x 300 mm
|
1100 x 700 x 350 mm
|
Max. Table-Quill Distance |
490 mm
|
500 mm
|
710 mm
|
Max. Electrode Weight |
30 kgs
|
40 kgs
|
60 kgs
|
Max. Table Loading |
600 kgs
|
800 kgs
|
1200 kgs
|
Dielectric Tank Capacity |
200 Litre
|
400 Litre
|
400 Litre
|
Filters |
2 PCS
|
2 PCS
|
3 PCS
|
Machine Weight |
1650 kgs
|
1900 kgs
|
2500 + 210 kgs
|
Machine Height |
2240 mm
|
2260 mm
|
2600 - 2330mm
|
